Features & Benefits

• High Flow, Automatically Reversible Oil Pump Provides Positive-Displacement Oil Lubrication
• Crankcase Venting System Equalizes Pressure During Startup and Assures Oil Return to Sump
• Oversize Sump Holds Extra Oil in Crankcase to Prevent Levels Dropping below Safe Lubrication Range During Flooded Starts
• Contoured Pistons Lower Cylinder Clearances to Increase Compressor Capacity and Efficiency
• High Efficiency Valves Provide Increased Refrigerant Flow and Lower Pressure Drops
• Electronic Oil-Pressure Switch

Specifications

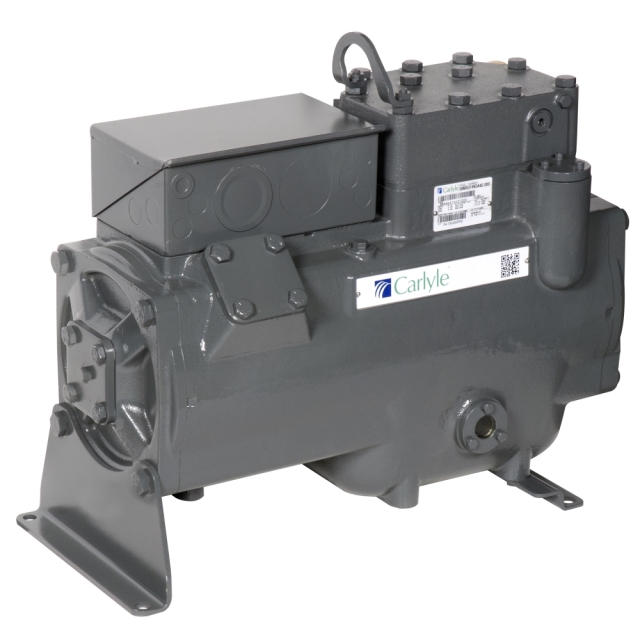

• Item: Compressor, 1-Step Electric Suction Cut-Off Unloading, Standard
• Size: 24 Inch Length x 18 Inch Width x 16 Inch Height
• Used On Item: Air Conditioner, Refrigerant
• Applicable Standard: UL, CSA, CE, NEC, ISO 9002
Motor Protection Internal Thermostat; Nominal Capacity 2.19 Ton (Low Temperature), 6.19 Ton (Medium Temperature), 10.64 Ton (High Temperature); Refrigerant Type R-404A/R-407A/R-407C/R-407F/R-448A/R-449A/R-450A/R-452A/R-507; Voltage Rating 208/230 Volt AC 60 Hertz 3-Phase; Control Voltage Rating 115/240 Volt; Motor Power Rating 5 HP (4-Cycle); Motor Torque Rating 27 Foot-Pound (6-Cycle); Air Flow Rating 28 CFM at 1750 RPM; Suction Service Valve Location Motor End; Suction Service Valve Orientation 30 Degree; Suction Service Valve End Cover Type 4-Bolt; Number of Cylinders 6; Bore Size 2 Inch; Start Type Across the Line (XL)
