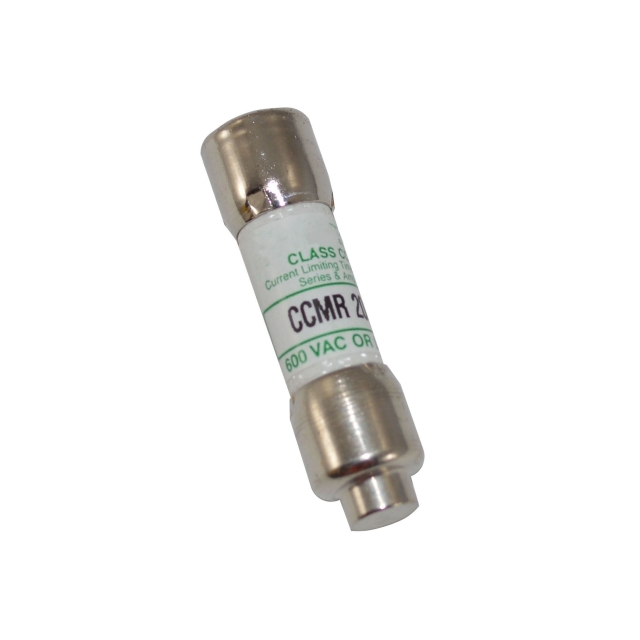

The CCMR series is ideal for space saving protection of motors up to 40 hp*. It was designed specifically to withstand sustained starting currents of small motors. The CCMR 60 fuse is the smallest 60 A fuse available rated at 600 V. Compared to other UL Listed fuses, Class CC fuses are the most current-limiting, rating for rating.

Features & Benefits

• Wrapped Construction-Provides Smooth Quiet Operation
• Single Fabric Design Allows Greater Flexibility
• Wrapped Belts are More Tolerant to Slipping and Misalignment than Raw Edge Belts
• Close Belt Tolerance-Browning Belts Offer the "Code 1" Match Belt System on All Classical and "358" Belts, Allowing Easy Selection of Just One Match Number for Each Belt Size
• This Ensures Tighter than RMA Standards
• High Tensile Cord-Specially Treated Cords to Provide Strength and Additional Flex Life While Providing Resistance to Elongation for the Belt

Specifications

• Type: C
• Outside Circumference: 79.2 Inch
• Top Width: 7/8 Inch
• Thickness: 17/32 Inch
• Material: Neoprene
• Application: Agitator, Brick Machinery, Blower and Exhauster, Bucket Elevator, Centrifugal Pump and Compressor, Exciter, Piston Compressor, Light Duty Conveyor, Belt Conveyor, Hammer Mill, Dough Mixer, Paper Mill Beater, Generator, Line Shaft, Laundry Machinery, Machine Tool, Punch Press Shear, Printing Machinery
• Applicable Standard: RMA
Height 0.53125 Inch; Pitch Length 77.9 Inch; Efficiency 95 Percent; Operating Temperature Rating 140 Deg F
