Description

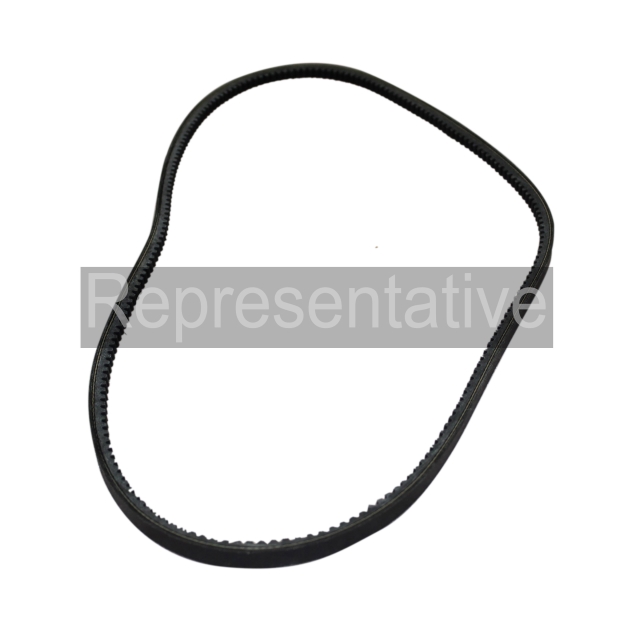

Regal Beloit Corporation (Browning) GRIPNOTCH® 7/8" x 17/32", 105.2" Outside Circumference, 103.9" Pitch Length, EPDM, Type CX, Notched, Cogged V-Belt
Features & Benefits
- Wrapped Construction-Provides Smooth Quiet Operation
- Single Fabric Design Allows Greater Flexibility
- Wrapped Belts are More Tolerant to Slipping and Misalignment than Raw Edge Belts
- Close Belt Tolerance-Browning Belts Offer the "Code 1" Match Belt System on All Classical and "358" Belts, Allowing Easy Selection of Just One Match Number for Each Belt Size
- This Ensures Tighter than RMA Standards
- High Tensile Cord-Specially Treated Cords to Provide Strength and Additional Flex Life While Providing Resistance to Elongation for the Belt
Specifications
- Type: C
- Outside Circumference: 124.2 Inch
- Top Width: 7/8 Inch
- Thickness: 17/32 Inch
- Material: Neoprene
- Application: Agitator, Brick Machinery, Blower and Exhauster, Bucket Elevator, Centrifugal Pump and Compressor, Exciter, Piston Compressor, Light Duty Conveyor, Belt Conveyor, Hammer Mill, Dough Mixer, Paper Mill Beater, Generator, Line Shaft, Laundry Machinery, Machine Tool, Punch Press Shear, Printing Machinery
- Applicable Standard: RMA, MPTA IP-20 Height 0.53125 Inch; Band Type Belt with End Joined; Pitch Length 122.9 Inch; Efficiency 95 Percent; Operating Temperature Rating 140 Deg F; Reinforcing Cord Material Synthetic Fiber
Documents
Specifications
- BrandBrowning
- Belt TypeMultiple V-Belt
- Cross Section Height17/32"
- Cross Section Width7/8"
- Outside Length Range101-150"
- SizeCX
- StyleCogged
- Common Belt SizeCX101
- MaterialRubber
- Outside Length105 in
- Shipping Height2.05 in
- Shipping Length12.65 in
- Shipping Width12.5 in
- SizeC
- Thickness0.53125
- TypeNotched V Belt
- Weight2 lb
