Description

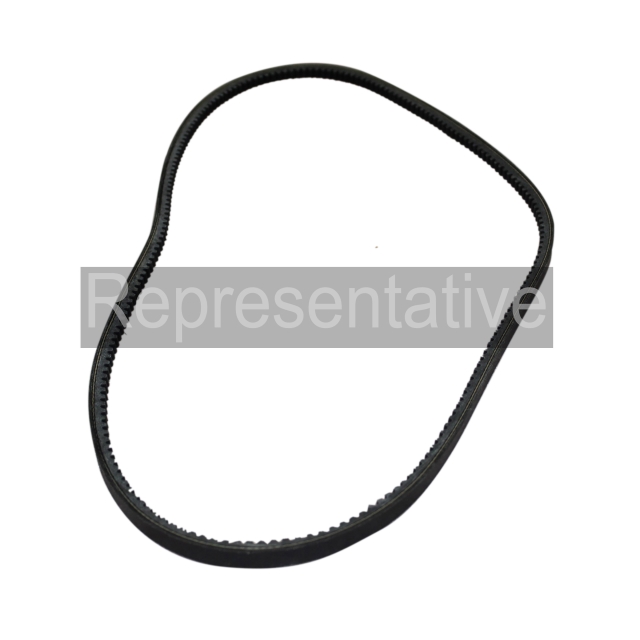

Regal Beloit Corporation (Browning) GRIPNOTCH® 7/8" x 17/32", 109.2" Outside Circumference, 107.9" Pitch Length, EPDM, Type CX, Notched, Cogged V-Belt
Features & Benefits
- EPDM Material Provides Expanded Operating Temperature Range to -60F Degrees to 250F Degrees Which Helps Ensure Long-Life and Reliable Performance in the Most Demanding Climates and Heat Sensitive Applications
- Precision Molded Cogs-Provide More Surface Area for Heat Dissipation and Increase Belt Flexibility. Cooler Running Means Longer Life
- Browning Notched Belts Assure Longer Life when Replacing Existing Wrapped V Belts
- Close Belt Tolerance-Browning Belts Offer the "Code 1" Match Belt System on all Classical and "358" Belts, Allowing Easy Selection of Just One Match Number for Each Belt Size
- This Ensures Tighter than RMA Standards
- High Tensile Cord-Specially Treated Cords to Provide Strength and Additional Flex Life while Providing Resistance to Elongation for the Belt
- Raw-Edge Sidewalls-Improved Gripping Contract with Pulley Sidewalls
- Assures Less Vibration and Smoother, Quieter Performance
- Notched Belts Provide Higher Horsepower than Wrapped V-Belts
Specifications
- Type: CX, Notched
- Outside Circumference: 105.2 Inch
- Top Width: 7/8 Inch
- Thickness: 17/32 Inch
- Material: EPDM
- Application: Agitator, Brick Machinery, Blower and Exhauster, Bucket Elevator, Centrifugal Pump and Compressor, Exciter, Piston Compressor, Light Duty Conveyor, Belt Conveyor, Hammer Mill, Dough Mixer, Paper Mill Beater, Generator, Line Shaft, Laundry Machinery, Machine Tool, Punch Press Shear, Printing Machinery
- Applicable Standard: RMA Height 0.5313 Inch; Pitch Length 103.9 Inch; Efficiency 98 Percent; Operating Temperature Rating 250 Deg F; Reinforcing Cord Material Nylon; Number of Ribs 1
Documents
Specifications
- BrandBrowning
- Belt TypeMultiple V-Belt
- Cross Section Height17/32"
- Cross Section Width7/8"
- Outside Length Range101-150"
- SizeCX
- StyleCogged
- Common Belt SizeCX105
- MaterialRubber
- Outside Length109 in
- Shipping Height1.75 in
- Shipping Length12.6 in
- Shipping Width13.25 in
- SizeC
- Thickness0.53125
- TypeNotched V Belt
- Weight2 lb
