Description

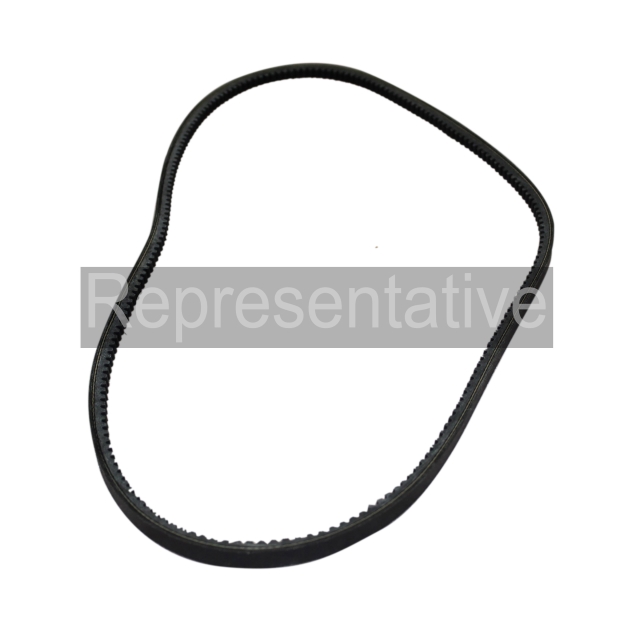

Regal Beloit Corporation (Browning) GRIPNOTCH® 7/8" x 17/32", 166.2" Outside Circumference, 164.9" Pitch Length, EPDM, Type CX, Notched, Cogged V-Belt
Features & Benefits
- Wrapped Construction-Provides Smooth Quiet Operation
- Single Fabric Design Allows Greater Flexibility
- Wrapped Belts are More Tolerant to Slipping and Misalignment than Raw Edge Belts
- Close Belt Tolerance-Browning Belts Offer the "Code 1" Match Belt System on All Classical and "358" Belts, Allowing Easy Selection of Just One Match Number for Each Belt Size
- This Ensures Tighter than RMA Standards
- High Tensile Cord-Specially Treated Cords to Provide Strength and Additional Flex Life While Providing Resistance to Elongation for the Belt
Specifications
- Type: C
- Outside Circumference: 199.2 Inch
- Top Width: 7/8 Inch
- Thickness: 17/32 Inch
- Material: Neoprene
- Application: Agitator, Brick Machinery, Blower and Exhauster, Bucket Elevator, Centrifugal Pump and Compressor, Exciter, Piston Compressor, Light Duty Conveyor, Belt Conveyor, Hammer Mill, Dough Mixer, Paper Mill Beater, Generator, Line Shaft, Laundry Machinery, Machine Tool, Punch Press Shear, Printing Machinery
- Applicable Standard: RMA Height 0.53125 Inch; Pitch Length 197.9 Inch; Efficiency 95 Percent; Operating Temperature Rating 140 Deg F
Documents
Specifications
- BrandBrowning
- Belt TypeMultiple V-Belt
- Cross Section Height13/32"
- Cross Section Width7/8"
- Outside Length Range151-250"
- SizeCX
- StyleCogged
- Common Belt SizeCX162
- MaterialRubber
- Outside Length166 in
- Shipping Height3.65 in
- Shipping Length12.2 in
- Shipping Width11.9 in
- SizeC
- Thickness0.53125
- TypeNotched V Belt
- Weight3.1 lb
