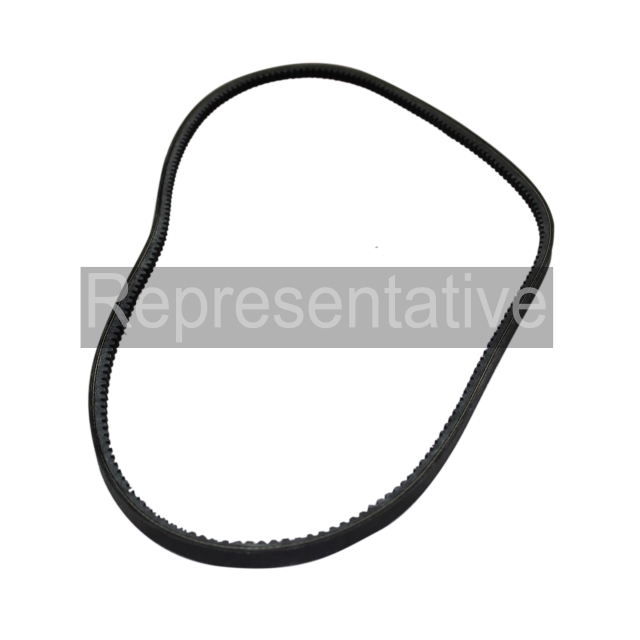

Browning CX55 Cogged V-Belt
Browning CX55 Cogged V-Belt
Description
Regal Beloit Corporation (Browning) Gripnotch® 59.2" L Outside, 39.31 HP, EPDM, CX, Notched, Cog V-Belt
Features & Benefits
- Precision Molded Raw Edge Construction
- More Horsepower in Less Space
- Notches are Molded Extra Deep
- Oil and Heat Resistant
- Static Conducting
Specifications
- Type: CX, Notched
- Outside Circumference: 59.2 Inch
- Material: EPDM
- Power Rating: 39.31 HP
- Application: Agitator, Brick Machinery, Blower and Exhauster, Bucket Elevator, Centrifugal Pump and Compressor, Exciter, Piston Compressor, Light Duty Conveyor, Belt Conveyor, Hammer Mill, Dough Mixer, Paper Mill Beater, Generator, Line Shaft, Laundry Machinery, Machine Tool, Punch Press Shear, Printing Machinery
- Pitch Length 57.9 Inch
- Temperature Rating -60 to 250 Deg F
- Efficiency 0.98 Percent
Documents
There are no documents available.
Specifications
- BrandBrowning
- Belt TypeMultiple V-Belt
- Cross Section Height17/32"
- Cross Section Width7/8"
- Outside Length Range51-60"
- SizeCX
- StyleCogged
- Common Belt SizeCX55
- MaterialRubber
- Outside Length59 in
- SizeC
- Thickness0.53125
- TypeNotched V Belt
- Weight1.1 lb
