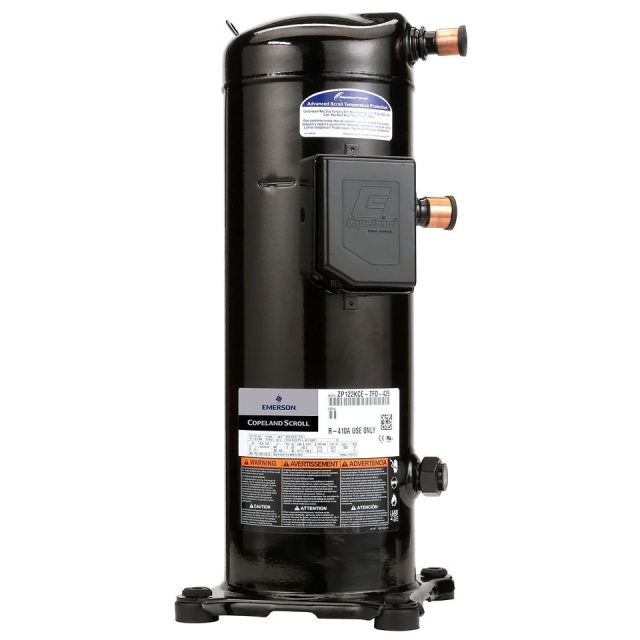

190000 BTU R22-R407C 200/230-3 Phase Copeland Scroll Compressor
190000 BTU R22-R407C 200/230-3 Phase Copeland Scroll Compressor
Description
Emerson Electric Co. (Copeland) Scroll™ 1-3/8" ODF Soldered Suction, 7/8" ODF Soldered Discharge, 200 to 220 VAC 50 Hz 3-Phase, 200 to 230 VAC 60 Hz, 190000 BTU/Hr, R-22/R-407C/R-134A, Scroll Compressor with POE Oil and External Enhanced Protection for Air Conditioner
Specifications
- Used On Item: Air Conditioner
- Connection Size 1-3/8 Inch ODF Soldered (Suction), 7/8 Inch ODF Soldered (Discharge)
- Refrigerant Type R-22/R-407C/R-134A
- Nominal Capacity 190000 BTU/Hour
- Voltage Rating 200 to 220 Volt AC 50 Hertz, 200 to 230 Volt AC 60 Hertz 3-Phase
- Motor Type 3-Lead 3-Phase
- Cooling Efficiency 11.3 EER
- Includes POE Oil, External Enhanced Protection
Documents
There are no documents available.
Specifications
- BrandCopeland
- Line Voltage (60Hz)240V
- Line Voltage 50 Hz200V, 220V
- Rated Voltage (50Hz)200/220
- Rated Voltage (60Hz)200/230
- RefrigerantR22, R407C
- Variety TypeScroll
- Compressor Capacity190000 btu
- Motor Phase3
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Point3700
- Shipping Weight0.01 lb
- Shipping Width0.1 in
