Description

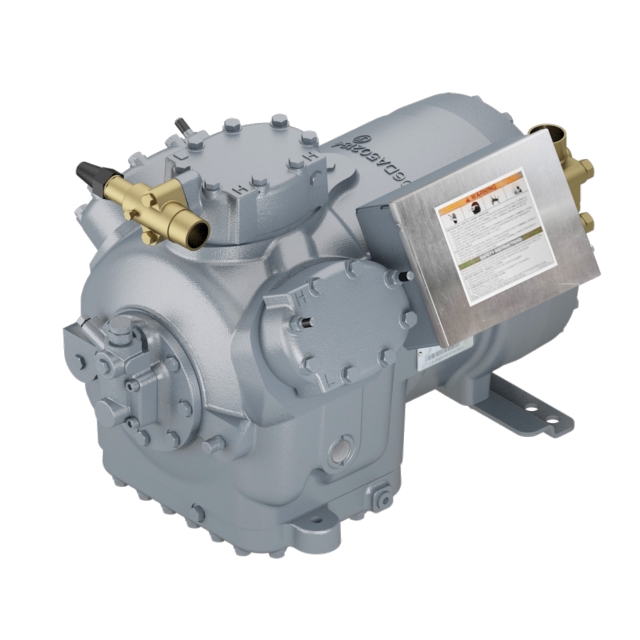

06DR8200D2325A
06DR = Compressor - Refrigeration Duty (Low Temperature)
8 = Motor Size
20 = Displacement in CFM at 1750 RPM
0 = New OEM Compressor (Carrier)
D = Motor End Suction Service Valve, 4-Bolt, 90D or 180D
2 = 24V AC Control Voltage, Electronic Overcurrent Protection
32 = 208/230-3-60
5 = No Oil
A = HFC Package - Single Pack Domestic w/o Valves or Oil
06DR = Compressor - Refrigeration Duty (Low Temperature)
8 = Motor Size
20 = Displacement in CFM at 1750 RPM
0 = New OEM Compressor (Carrier)
D = Motor End Suction Service Valve, 4-Bolt, 90D or 180D
2 = 24V AC Control Voltage, Electronic Overcurrent Protection
32 = 208/230-3-60
5 = No Oil
A = HFC Package - Single Pack Domestic w/o Valves or Oil
Standard Features
- High-flow, automatically reversible oil pump provides positive-displacement oil lubrication.
- Crankcase venting system equalizes pressure during startup and assures oil return to sump.
- Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts.
- Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency.
- High-efficiency valves provide increased refrigerant flow and lower pressure drops.
- Electronic oil-pressure switch.
Specifications
- BrandCarlyle
- ApplicationLow Temperature, Refrigeration Duty
- CFM Displacement20
- Cylinders4
- DesignNew
- RefrigerantR134A, R22, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R500, R502, R507, R513A
- Variety Type06D/6D - Reciprocating
- Voltage208/230
- Frequency60Hz
- LRA160
- Max RLA28.2
- Motor Phase3
- Shipping Height17 in
- Shipping Length24 in
- Shipping Weight260 lb
- Shipping Width15 in
