Special Service Compressor 208/230/460V (60Hz-50Hz) AC Duty
Special Service Compressor 208/230/460V (60Hz-50Hz) AC Duty
Description

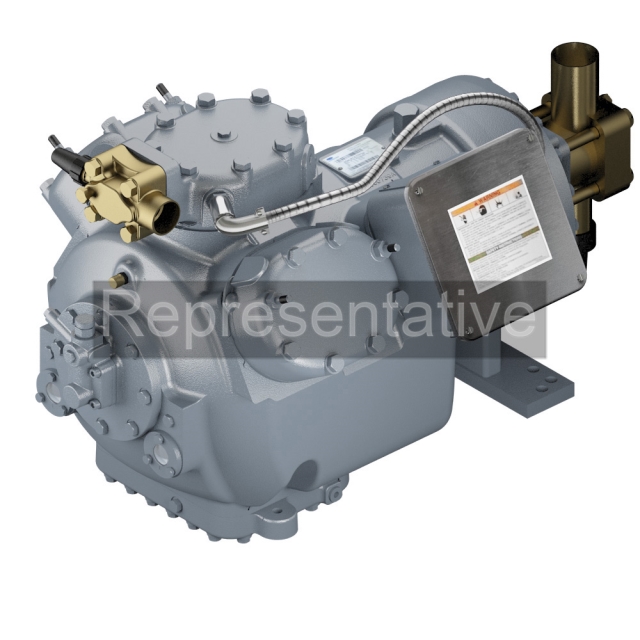

Carrier (Carlyle) 25.25 Ton, 208/230/460 VAC 50/60 Hz 3-Phase, 65 CFM, R-404A/R-407A/R-407C/R-407F/R-448A/R-449A/R-450A/R-452A/R-507, 1-Step Electric Suction Cut-Off Unloading, Reversed Center Cylinder Head, Semi-Hermetic Reciprocating Compressor without Oil for Air Conditioner
Features & Benefits
- ASTP (Advanced Scroll Temperature Protection) to Protect Compressor from High Discharge Temperatures
Specifications
- Item: Compressor
- Used On Item: High Temperature and Ultra High Pressure Air Conditioner Motor Type 3-Phase 3-Lead Single Voltage; Motor Protection Internal Inherent; Nominal Capacity 122000 BTU; Refrigerant Type R-410A; Voltage Rating 200/220 Volt AC 50 Hertz, 200/230 Volt AC 60 Hertz 3-Phase; Power Rating 9 to 10 HP; Efficiency 11.3 EER; Includes Polyol Ester Oil
Specifications
- BrandCarlyle
- ApplicationAC Duty
- CFM Displacement65
- Cylinders6
- DesignService Special
- RefrigerantR134A, R22, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R500, R502, R507, R513A
- Unloading Steps1-Step Electric
- Unloading TypeSuction Cut-Off
- Variety Type06E/6E - Reciprocating
- Voltage208/230/460
- Frequency50Hz, 60Hz
- Motor Phase3
- Shipping Height20 in
- Shipping Length33 in
- Shipping Weight480 lb
- Shipping Width24 in
