Service Compressor 400/460V (60Hz-50Hz) AC Duty
Service Compressor 400/460V (60Hz-50Hz) AC Duty
Description

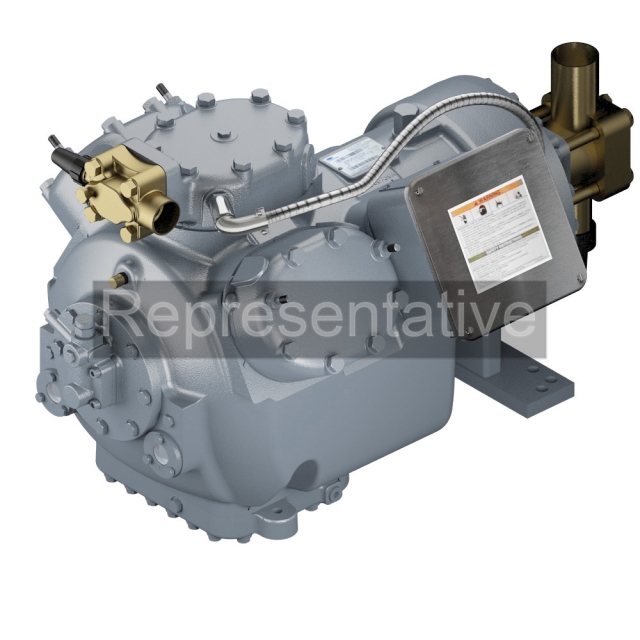

Carrier (Carlyle) 27.85 Ton, 400/460 VAC 50/60 Hz 3-Phase, 75 CFM, R-404A/R-407A/R-407C/R-407F/R-448A/R-449A/R-450A/R-452A/R-507, 2-Step Pressure Suction Cut-Off Unloading, Reversed Center Cylinder Head, Semi-Hermetic Reciprocating Compressor with Oil for Air Conditioner
Features & Benefits
- High Flow, Automatically Reversible Oil Pump Provides Positive-Displacement Oil Lubrication
- Crankcase Venting System Equalizes Pressure During Startup and Assures Oil Return to Sump
- Oversize Sump Holds Extra Oil in Crankcase to Prevent Levels Dropping below Safe Lubrication Range During Flooded Starts
- Contoured Pistons Lower Cylinder Clearances to Increase Compressor Capacity and Efficiency
- High Efficiency Valves Provide Increased Refrigerant Flow and Lower Pressure Drops
- Electronic Oil-Pressure Switch
Specifications
- Item: Compressor, Standard Center Cylinder Head
- Size: 33 Inch Length x 24 Inch Width x 20 Inch Height
- Used On Item: Air Conditioner
- Applicable Standard: UL, CSA, CE, NEC, ISO 9002 Nominal Capacity 4.58 Ton (Low Temperature), 14.45 Ton (Medium Temperature), 25.25 Ton (High Temperature); Refrigerant Type R-404A/R-407A/R-407C/R-407F/R-448A/R-449A/R-450A/R-452A/R-507; Voltage Rating 575 Volt AC 60 Hertz 3-Phase; Motor Power Rating 25 HP; Efficiency 8.8 EER; Air Flow Rating 65 CFM at 1750 RPM; Temperature Rating 0 to 50 Deg F; Excludes Oil
Specifications
- BrandCarlyle
- ApplicationAC Duty
- CFM Displacement75
- Cylinders6
- DesignManufactured Service
- RefrigerantR134A, R22, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R500, R502, R507, R513A
- Unloading Steps2-Step Mechanical
- Unloading TypeSuction Cut-Off
- Variety Type06E/6E - Reciprocating
- Voltage400/460
- Frequency50Hz, 60Hz
- Motor Phase3
- Shipping Height20 in
- Shipping Length33 in
- Shipping Weight490 lb
- Shipping Width24 in
