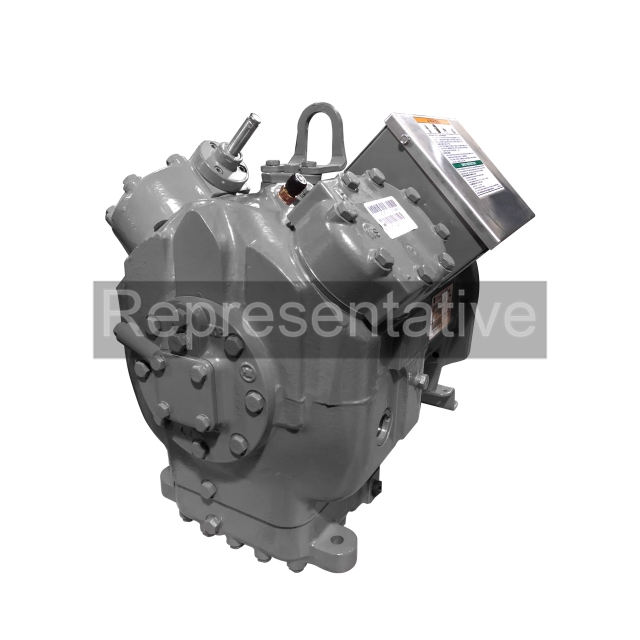

Carlyle

Compressor 400/460V (50/60) AC Duty

SKU:06DA8180A20601
Carlyle

Compressor 400/460V (50/60) AC Duty

SKU:06DA8180A20601

    Description

    06DA8180A20601
    06DA = Compressor - A/C Duty (No Unloading)
    8 = Motor Size
    18 = Displacement in CFM at 1750 RPM
    0 = New OEM Compressor (Carrier)
    A = Motor End Suction Service Valve, 2-Bolt, 30D
    2 = 24V AC Control Voltage, Electronic Overcurrent Protection
    06 = 400/460-3 (50/60)
    0 = 1st Generation Suction Cut-Off Unloading
    1 = Single Pack Domestic Less Service Valve

    Standard Features

    • High-flow, automatically reversible oil pump provides positive-displacement oil lubrication.
    • Crankcase venting system equalizes pressure during startup and assures oil return to sump.
    • Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts.
    • Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency.
    • High-efficiency valves provide increased refrigerant flow and lower pressure drops.
    • Electronic oil-pressure switch.
    Note: Compressor Core Credit applied Upon Return of Compressor Body. Core Credit Pricing Varies by Model.

    Specifications

    • BrandCarlyle
    • ApplicationAC Duty
    • CFM Displacement18
    • Cylinders4
    • DesignNew
    • RefrigerantR134A, R22, R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R500, R502, R507, R513A
    • Suction Line Size1-1/8"
    • Unloading StepsNo Unloading
    • Unloading TypeNo Unloading
    • Variety Type06D/6D - Reciprocating
    • Voltage400/460
    • Frequency50/60
    • LRA80
    • Max RLA14.1
    • Motor Phase3
    • Shipping Height17 in
    • Shipping Length24 in
    • Shipping Weight250 lb
    • Shipping Width15 in
