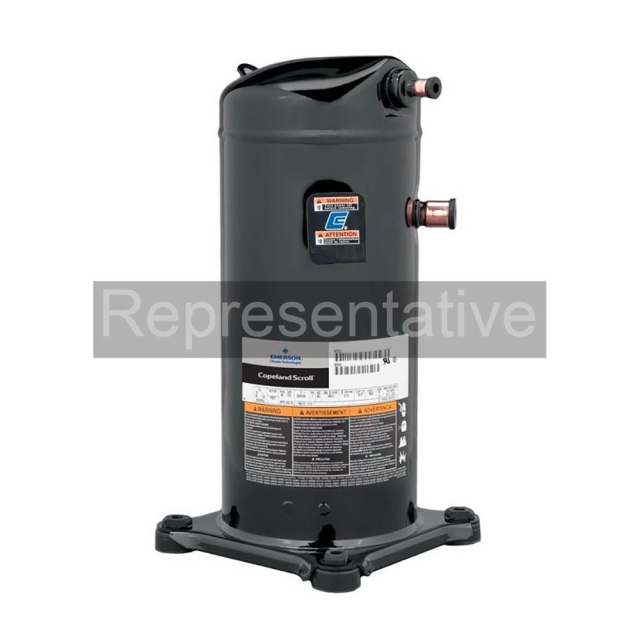

91000 BTU R410A 575-3 Phase Copeland Scroll Compressor
91000 BTU R410A 575-3 Phase Copeland Scroll Compressor
Description
ZP91KCE-TFE-899
Z = Scroll Compressor
P = A/C Duty - R410A
91K = 91000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
E = 500-3-50 / 575-3-60
899 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
91K = 91000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
E = 500-3-50 / 575-3-60
899 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity80400-90500
- CFM10.46
- HP7.5
- Line Voltage (60Hz)600V
- Rated Voltage (60Hz)575
- RefrigerantR410A
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity91000 btu
- Frequency60
- Height17.45 in
- Length9.57 in
- Liquid Line Size3/4 in
- LRA78
- Max RLA9.6
- Max Watts8230
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge3.5 pints
- Shipping Height17.45 in
- Shipping Length9.57 in
- Shipping Point37406
- Shipping Weight90 lb
- Shipping Width9.77 in
- TechnologyScroll
- TypeHerm
- Voltage575
- Weight90 lb
- Width9.77 in
