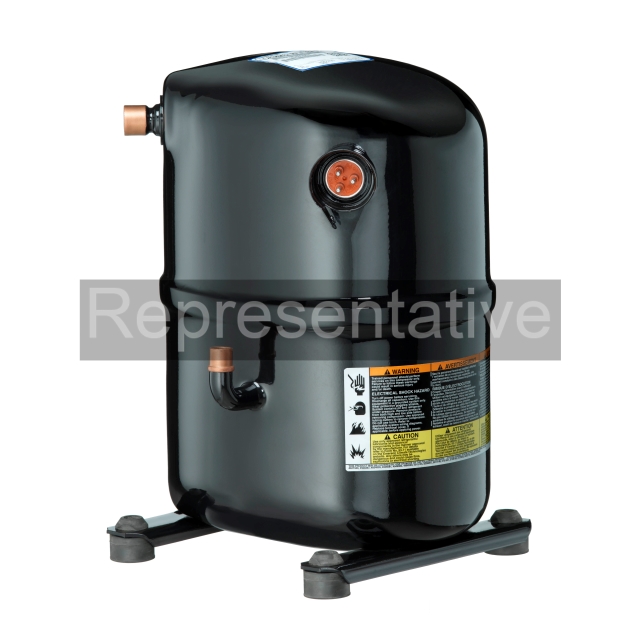

18000 BTU R22 208/230-3 Phase Copeland Reciprocating Compressor
18000 BTU R22 208/230-3 Phase Copeland Reciprocating Compressor
Description
CR18K6E-TF5-775
C = Hermetic Reciprocating Compressor
R = R22/R407C, High Temp A/C, H/P
18K = 18000 BTU
6 = Product Family
E = POE Oil
T = Three Phase
F = Internal Inherent Protection, One Protector, use with contactor
5 = 200/240-3-50 / 200/230-3-60
775 = Bill of Material Product Variation
C = Hermetic Reciprocating Compressor
R = R22/R407C, High Temp A/C, H/P
18K = 18000 BTU
6 = Product Family
E = POE Oil
T = Three Phase
F = Internal Inherent Protection, One Protector, use with contactor
5 = 200/240-3-50 / 200/230-3-60
775 = Bill of Material Product Variation
Standard Features
- Rugged reciprocating technology
- Superior efficiency
- Best suited for 55°C high ambient conditions
- Strong liquid handling capability
- Industry leading reliability
- Multiple foot mounting configuration
- UL and IECEE certified
Specifications
- BrandCopeland
- ApplicationAC/HP Duty, High Temperature
- Capacity17600
- Cylinders2
- Discharge ConnectionUp
- Discharge ID1/2"
- Line Voltage (60Hz)240V
- Mounting ArrangementA
- Rated Voltage (60Hz)208/230
- RefrigerantR22
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionHorizontal
- Suction ID3/4"
- Suction Line Size3/4"
- Variety TypeReciprocating
- ApplicationA/C
- Compressor Capacity18000 btu
- Discharge Line Height5.86
- Frequency50Hz, 60Hz
- Height13.1 in
- Length10.2 in
- Liquid Line Size1/2 U 5.86 in
- LRA49.0
- Max RLA6.1
- Max Watts1305
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge2.6875 pints
- Run CapacitorN/A
- Shell Height13.2 in
- Shipping Height20 in
- Shipping Length15 in
- Shipping Point37406
- Shipping Weight71 lb
- Shipping Width13 in
- Suction Line Height11.07
- TechnologyRecip
- TypeHerm
- Voltage208/230
- Weight61 lb
- Width9.7 in
