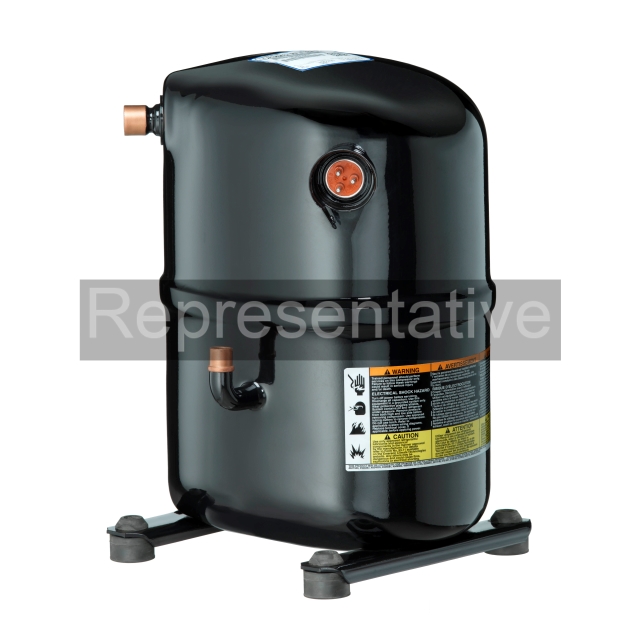

22000 BTU R22 265-1 Phase Copeland Reciprocating Compressor
22000 BTU R22 265-1 Phase Copeland Reciprocating Compressor
Description
CR22K6E-PFJ-775
C = Hermetic Reciprocating Compressor
R = R22/R407C, High Temp A/C, H/P
22K = 22000 BTU
6 = Product Family
E = POE Oil
P = Single Phase
F = Internal Inherent Protection, One Protector, use with contactor
J = 220/240-1-50 / 265-1-60
775 = Bill of Material Product Variation
C = Hermetic Reciprocating Compressor
R = R22/R407C, High Temp A/C, H/P
22K = 22000 BTU
6 = Product Family
E = POE Oil
P = Single Phase
F = Internal Inherent Protection, One Protector, use with contactor
J = 220/240-1-50 / 265-1-60
775 = Bill of Material Product Variation
Standard Features
- Rugged reciprocating technology
- Superior efficiency
- Best suited for 55°C high ambient conditions
- Strong liquid handling capability
- Industry leading reliability
- Multiple foot mounting configuration
- UL and IECEE certified
Specifications
- BrandCopeland
- ApplicationAC/HP Duty, High Temperature
- Capacity19900
- Cylinders2
- Discharge ConnectionStub
- Discharge ID1/2"
- Line Voltage (60Hz)277V
- Mounting ArrangementA
- Rated Voltage (60Hz)265
- RefrigerantR22
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionStub
- Suction ID3/4"
- Suction Line Size3/4"
- Variety TypeReciprocating
- ApplicationA/C
- Compressor Capacity22000 btu
- Frequency50Hz, 60Hz
- Height13.3 in
- Length10.2 in
- Liquid Line Size1/2 in
- LRA55.0
- Max RLA9.9
- Motor Phase1
- Oil Capacity0 ml
- Oil Recharge2.6875 pints
- Run Capacitor30/370 µF/v
- Shell Height13.3 in
- Shipping Height20 in
- Shipping Length15 in
- Shipping Point37406
- Shipping Weight65 lb
- Shipping Width13 in
- TechnologyRecip
- TypeHerm
- Voltage265
- Weight62 lb
- Width9.7 in
