Description

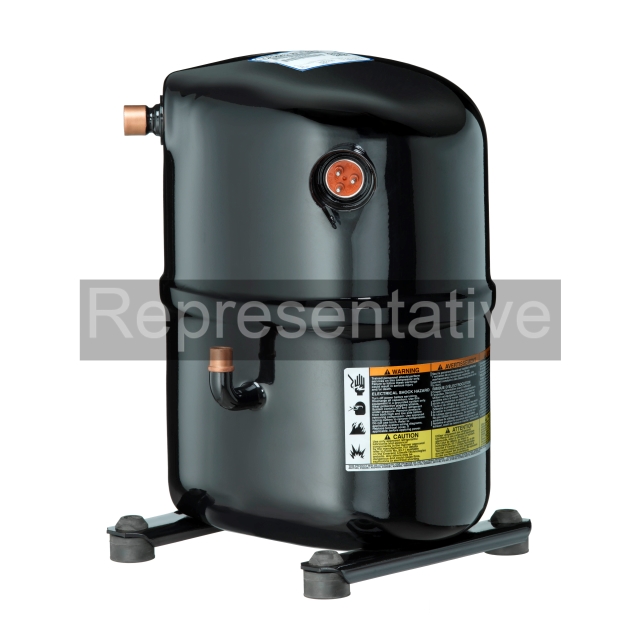

Emerson Electric Co. (Copeland) 10.62" x 9.23", 5/8" ODF Soldered Suction, 3/8" ODF Soldered Discharge, 380/420 VAC 50 Hz 3-Phase, 460 VAC 60 Hz, 28000 BTU/Hr, Hermetic, Reciprocating Compressor with Internal Inherent Protection for Air Conditioner
Features & Benefits
- 6th Generation Fixed Speed Reciprocating Compressor
- Quiet Operation
Specifications
- Size: 10.62 Inch Length x 9.23 Inch Width
- Used On Item: High and Medium Temperature Air Conditioner and Heat Pump
- Connection Size 5/8 Inch ODF Soldered (Suction), 3/8 Inch ODF Soldered (Discharge)
- Nominal Capacity 28000 BTU/Hour
- Voltage Rating 380/420 Volt AC 50 Hertz, 460 Volt AC 60 Hertz 3-Phase
- Motor Type 3-Phase
- Includes Internal Inherent Protection
Documents
There are no documents available.
Specifications
- BrandCopeland
- ApplicationAC/HP Duty, High Temperature
- Capacity27500
- Discharge ConnectionUp
- Discharge ID3/8"
- Line Voltage (60Hz)480V
- Rated Voltage (60Hz)460
- RefrigerantR22
- Suction ConnectionUp
- Suction ID5/8"
- Suction Line Size5/8"
- Variety TypeReciprocating
- ApplicationA/C
- Compressor Capacity28000 btu
- Compressor EER10.5
- Discharge Line Height3.5
- Frequency60Hz
- Height13.9 in
- Length9.3 in
- Liquid Line Size3/8 in
- LRA30
- Max RLA4.4
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge2.6875 pints
- RLA4.4
- Shipping Height16 in
- Shipping Length15 in
- Shipping Weight61 lb
- Shipping Width15 in
- Suction Line Height13.38
- TechnologyRecip
- TypeHerm
- Voltage460
- Weight59 lb
- Width8.9 in
