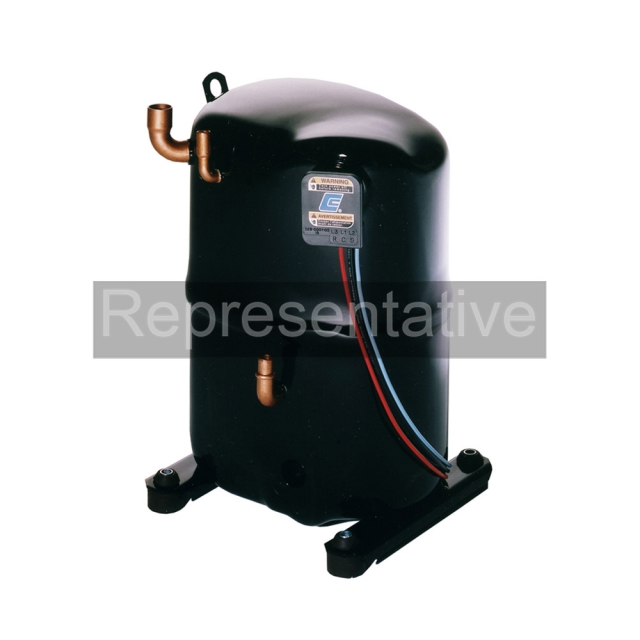

58400 BTU R22 575-1 Phase Copeland Reciprocating Compressor
58400 BTU R22 575-1 Phase Copeland Reciprocating Compressor
Description
Emerson Electric Co. (Copeland) 208/230 VAC 60 Hz, 200/220 VAC 50 Hz, 1-Phase, 27250 to 78400 BTU, Polyester Oil, Hermetic, Reciprocating Compressor for Air Conditioner
The Copeland CRK5 compressor is the leader in reciprocating performance with a broad range for packaged system, geothermal and heat pump applications.
Features & Benefits
- Fixed speed reciprocating compressor
Specifications
- Item: Reciprocating Compressor, Hermetic
- Used On Item: Air Conditioner
- Applicable Standard: UL, CSA, MEA
- Model Variation 5
- Bill of Material Number 970
- Refrigerant Type R-22/R-407C/R-502
- Voltage Rating 208/230 Volt AC 60 Hertz, 200/220 Volt AC 50 Hertz
- Number of Phases 1
- Capacity 27250 to 78400 BTU
- Cooling Efficiency up to 16.8
- Oil Type Polyester
- Motor Protection Type Internal Inherent
- Motor Type 1-Phase Permanent Split Capacitor
- Application High Temperature Refrigeration, Heat Pump
Documents
There are no documents available.
Specifications
- BrandCopeland
- ApplicationAC/HP Duty, High Temperature
- Capacity58400
- Cylinders2
- Discharge ConnectionUp
- Discharge ID1/2"
- Line Voltage (60Hz)240V
- Mounting ArrangementA
- Rated Voltage (60Hz)575
- RefrigerantR22
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionUp
- Suction ID7/8"
- Suction Line Size7/8"
- Variety TypeReciprocating
- Compressor Capacity58400 btu
- Discharge Line Height2.78
- Frequency50Hz, 60Hz
- Height16.1 in
- Length11.38 in
- Liquid Line Size1/2 U 2.78 in
- LRA135
- Max RLA30.7
- Motor Phase1
- Oil Capacity0 ml
- Oil Recharge4.125 pints
- Run Capacitor45/440 µF/v
- Shell Height16.1 in
- Shipping Height19 in
- Shipping Length15 in
- Shipping Point37406
- Shipping Weight98 lb
- Shipping Width15 in
- Suction Line Height15.29
- TechnologyRecip
- TypeHerm
- Voltage208/230
- Weight87 lb
- Width9.38 in
