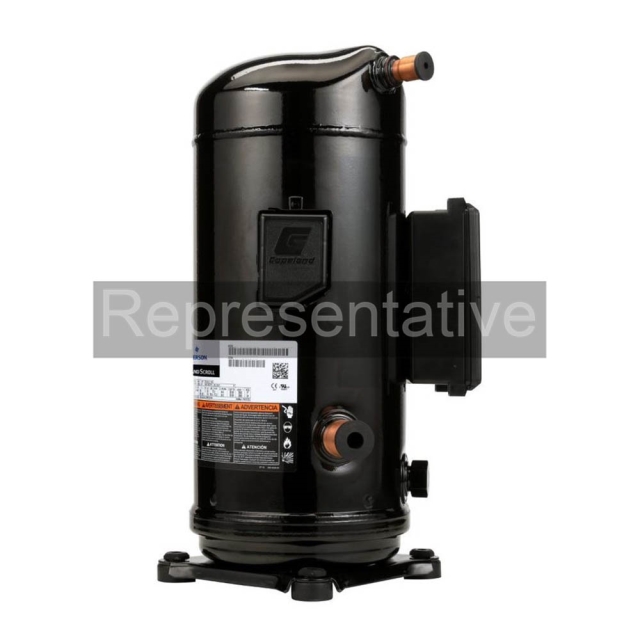

DIGITAL COMPRESSOR 208/230V
DIGITAL COMPRESSOR 208/230V
Description
ZPD104KCE-TF5-950
Z = Scroll Compressor
P = A/C Duty - R410A
D = Digital
104K = 104000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
950 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
D = Digital
104K = 104000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
950 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Documents
Specifications
- BrandCopeland
- Capacity106000
- HP9
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Suction Line Size1-1/8"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity104000 btu
- Frequency50Hz, 60Hz
- Height24.3 in
- Length10.61 in
- Liquid Line Size7/8 in
- LRA240.0
- Max RLA31.4
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge5.0625 pints
- Shipping Height24.3 in
- Shipping Length10.61 in
- Shipping Point37406
- Shipping Weight107.6 lb
- Shipping Width10.32 in
- TechnologyScroll
- TypeHerm
- Voltage200/220/230
- Weight107.6 lb
- Width10.32 in
