COMPRESSOR(DIGITAL 460V)
COMPRESSOR(DIGITAL 460V)
Description

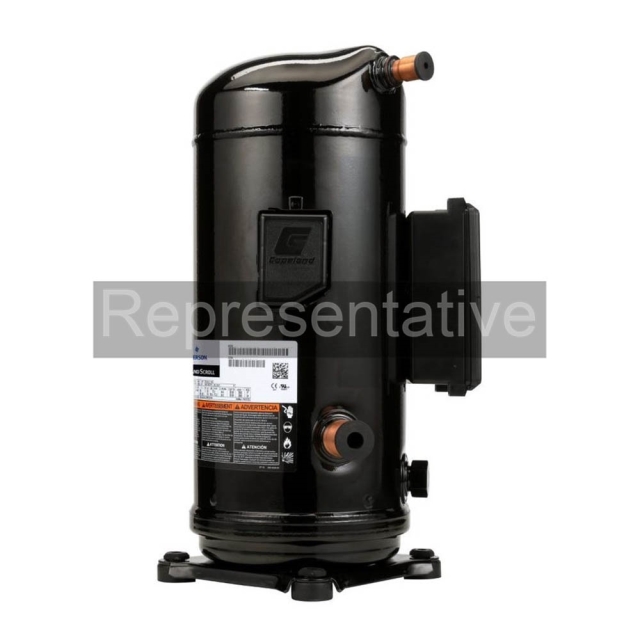

ZPD122KCE-TFD-455
Z = Scroll Compressor
P = A/C Duty - R410A
D = Digital
122K = 122000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
455 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
D = Digital
122K = 122000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
455 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Documents
Specifications
- BrandCopeland
- Line Voltage (60Hz)480V
- Rated Voltage (60Hz)460
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Variety TypeScroll
- Compressor Capacity122000 btu
- Frequency50Hz, 60Hz
- Motor Phase3
- Shipping Height0.1 in
- Shipping Length0.1 in
- Shipping Weight0.01 lb
- Shipping Width0.1 in
