Features & Benefits

• High Flow, Automatically Reversible Oil Pump Provides Positive-Displacement Oil Lubrication
• Crankcase Venting System Equalizes Pressure During Startup and Assures Oil Return to Sump
• Oversize Sump Holds Extra Oil in Crankcase to Prevent Levels Dropping below Safe Lubrication Range During Flooded Starts
• Contoured Pistons Lower Cylinder Clearances to Increase Compressor Capacity and Efficiency
• High Efficiency Valves Provide Increased Refrigerant Flow and Lower Pressure Drops
• Electronic Oil-Pressure Switch

Specifications

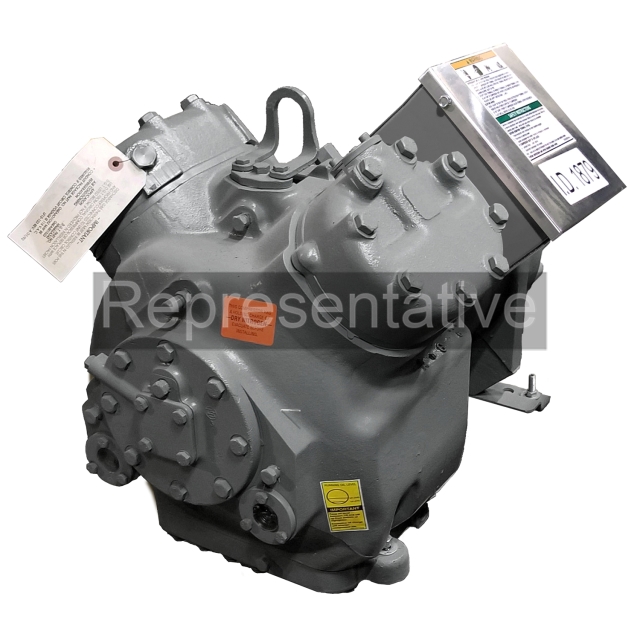

• Item: Compressor, Standard
• Used On Item: Low Temperature Refrigerant
• Applicable Standard: UL, CSA, CE, NEC, ISO 9002
Motor Protection Electronic Overcurrent; Refrigerant Type R-404A/R-407A/R-407C/R-407F/R-448A/R-449A/R-450A/R-452A/R-507; Voltage Rating 400/460 Volt AC 50/60 Hertz 3-Phase; Control Voltage Rating 24 Volt AC; Motor Power Rating 5 HP (4-Cycle); Power Rating 6-1/2 HP; Motor Torque Rating 20 Foot-Pound; Air Flow Rating 25 CFM at 1750 RPM; Suction Service Valve Location Motor End; Suction Service Valve Orientation 90 or 180 Degree; Suction Service Valve End Cover Type 4-Bolt; Start Type Across the Line (XL); Includes Terminal Box
