Danfoss scroll compressors are designed and manufactured according to the state of the art and to valid European and US regulations. Particular emphasis has been placed on safety and reliability.

Features & Benefits

• H-Series Scroll Compressors are Manufactured Using the Most Advanced Machining, Assembly and Process Control Techniques
• In Design of Both the Compressor and the Factory, Very High Standards of Reliability and Process Control Were First Priority
• The Result is a Highly Efficient Product with the Highest Reliability Obtainable and a Low Sound Level
• The H-Series Compressors can be Black or Blue Depending on the Production Site

Specifications

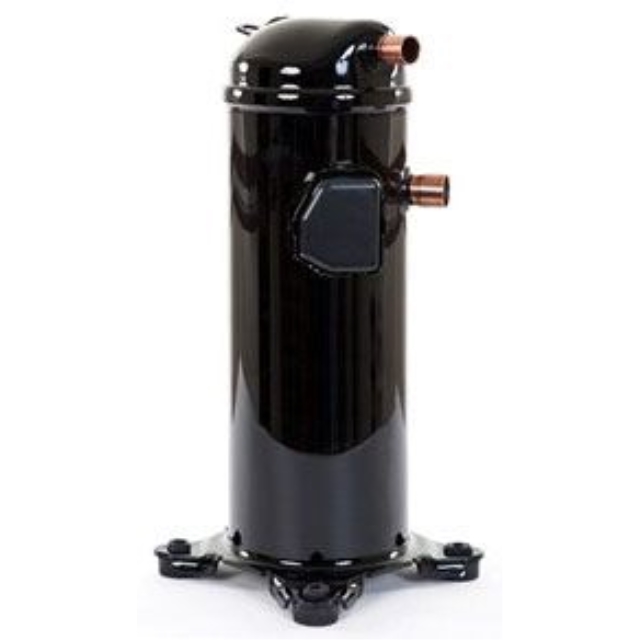

• Item: Scroll Compressor
• Size: 184 Millimeter Diameter x 239 Millimeter Length x 455 Millimeter Height
• Color/Finish: Black
• Used On Item: Light Commercial Air Conditioner
• Applicable Standard: UL, CE
• Refrigerant Type R-410A (PVE Oil)
• Connection Type Brazed
• Connection 7/8 Inch Suction x 1/2 Inch Discharge
• Voltage Rating 230 Volt AC 60 Hertz 1-Phase
• Maximum Operating Current Rating 57.6 Amp
• Current Rating 26.9 Amp (Locked Rotor), 42 Amp (Motor Control Center)
• Capacity Control Fixed Speed
• Speed Rating 3500 RPM (60 Hertz)
• Enclosure Rating IP22
• Configuration Code Single
• Oil Charge 1.57 Liter
• Viscosity 68 Centipoise
