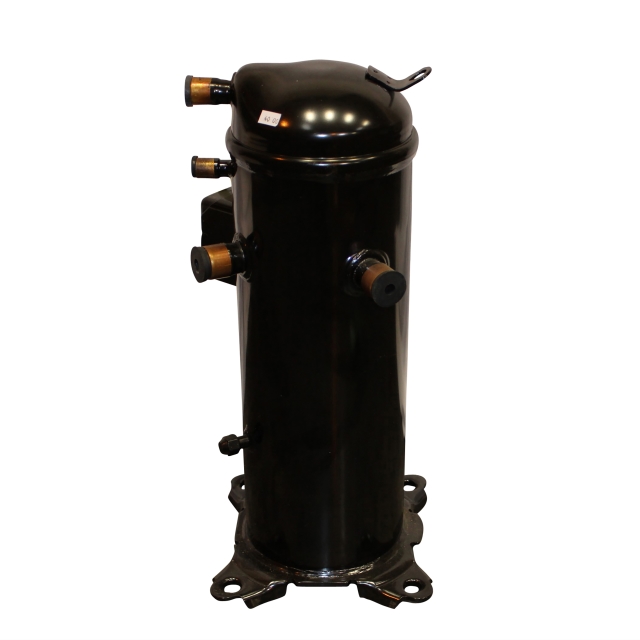

81000 BTU R22 208/230-3 Phase Danfoss Scroll Compressor
81000 BTU R22 208/230-3 Phase Danfoss Scroll Compressor
Description
This is a genuine Factory Authorized PartTM - Model# HLM081T2LC6. Below are some of the many benefits of purchasing FAP parts.
Â
Ease of Install and Service
Provides exact drop-in replacement
Performance
Meets exact design specifications for optimum system performance
Proprietary
Design specifications are proprietary and not available to other parts manufacturers
Quality
Meets exact part design life testing for maximum reliability and durability
Ratings
Maintains agency listings and safety standards
Warranty
Preserves equipment warranty
Replacement for
Documents
There are no documents available.
Specifications
- BrandDanfoss
- Capacity81516
- Discharge ConnectionHorizontal
- Discharge ID3/4"
- Line Voltage (60Hz)240V
- Mounting ArrangementA
- Rated Voltage (60Hz)208/230
- RefrigerantR22
- Refrigerant Oil TypeAlkyl Benzene (ABMO)
- Suction ConnectionHorizontal
- Suction ID7/8"
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationAC/HP
- Compressor Capacity81000 btu
- Discharge Line Height16.6
- Frequency60Hz
- Height17.2 in
- Liquid Line Size3/4 H 16.6 in
- Max RLA21.1
- Motor Phase3
- Run CapacitorN/A
- Shell Height17.2 in
- Shipping Height18.9 in
- Shipping Length10.8 in
- Shipping Weight90.6 lb
- Shipping Width11 in
- Suction Line Height11
- TechnologyScroll
- TypeHerm
- Voltage208/230
