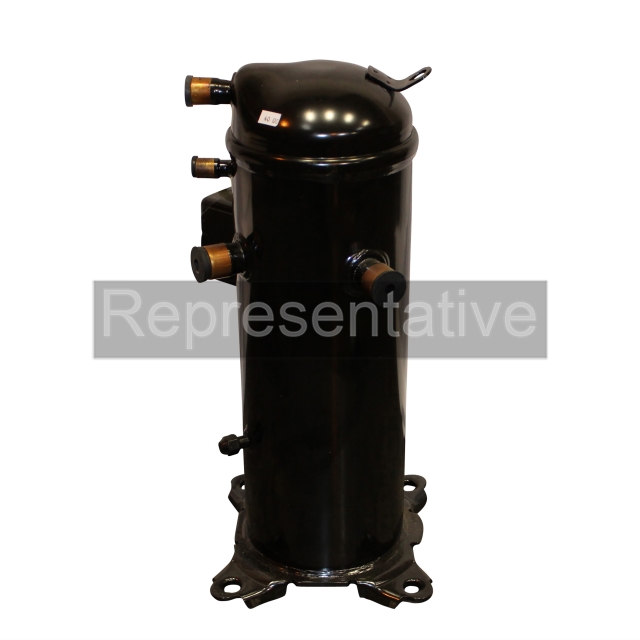

39000 BTU R410A 208/230-1 Phase Danfoss Scroll Compressor
39000 BTU R410A 208/230-1 Phase Danfoss Scroll Compressor
Description
Danfoss 39000 BTU/Hr, 7/8" ODF Suction, 1/2" ODF Discharge, Black, 208/230 VAC 60 Hz 1-Phase, PVE Oil, R-410A, Fixed Speed, Air Conditioner Scroll Compressor
Specifications
- Item: Compressor, Fixed Speed
- Size: 165 Millimeter Diameter x 239 Millimeter Length x 239 Millimeter Width x 413 Millimeter Height
- Color/Finish: Black
- Used On Item: Air Conditioner
- Applicable Standard: UL, CE Motor Protection Internal Overload/Electronic Overcurrent; Nominal Capacity 34000 BTU/Hour; Refrigerant Type R-22; Voltage Rating 208 to 230 Volt AC 60 Hertz 1-Phase; Current Rating 16.7 Amp (RLA), 96.7 Amp (LRA), 26 Amp (MCC); Suction Connection 3/4 Inch ODF Soldered; Discharge Connection 1/2 Inch ODF Soldered; Speed Rating 3500 RPM at 60 Hertz; Viscosity 32 Centipoise; Enclosure Rating IP22; Connection Type Brazed, Spade Terminal; Application Residential
Replacement for
Documents
Specifications
- BrandDanfoss
- Capacity39500
- Discharge ConnectionHorizontal
- Discharge ID1/2"
- Line Voltage (60Hz)240V
- Mounting ArrangementA
- Rated Voltage (60Hz)208/230
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionHorizontal
- Suction ID7/8"
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationAC/HP
- Compressor Capacity39000 btu
- Discharge Line Height15.9
- Frequency60Hz
- Height16.5 in
- Liquid Line Size1/2 H15.9 in
- LRA115
- Max RLA21
- Motor Phase1
- Oil Capacity0 ml
- Oil Recharge39 pints
- Run Capacitor60/370 µF/v
- Shell Height16.5 in
- Shipping Height18.9 in
- Shipping Length10.7 in
- Shipping Point37406
- Shipping Weight72.95 lb
- Shipping Width10.6 in
- Suction Line Height10.8
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight68 lb
