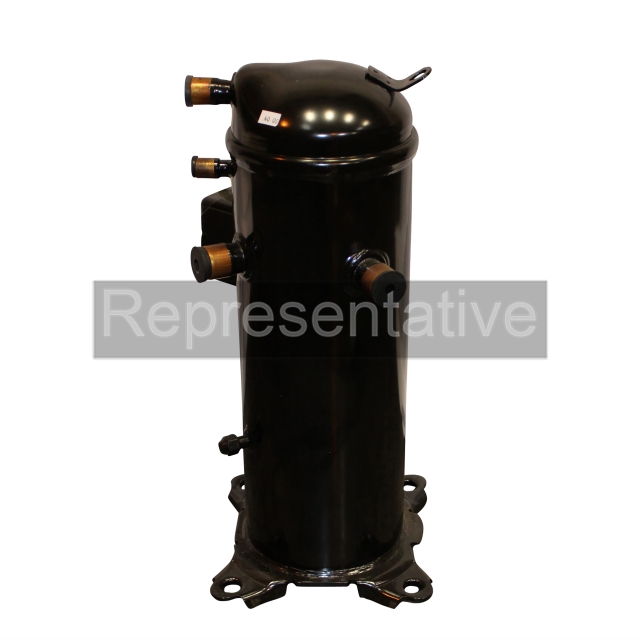

40000 BTU R410A 208/230-1 Phase Danfoss Scroll Compressor
40000 BTU R410A 208/230-1 Phase Danfoss Scroll Compressor
Description
ASERCOM (Danfoss) 165 MM x 439 MM, Black, 41640 BTU/Hr Cooling, R410A, 230 VAC 60 Hz 1-Phase, 12.2 kW, 3500 RPM, Fixed Speed, Scroll Compressor with Relief Valve for Air Conditioner
Specifications
- Item: Compressor, Fixed Speed
- Size: 165 Millimeter Diameter x 239 Millimeter Length x 239 Millimeter Width x 413 Millimeter Height
- Color/Finish: Black
- Used On Item: Air Conditioner
- Applicable Standard: UL, CE Motor Protection Internal Overload/Electronic Overcurrent; Nominal Capacity 32000 BTU/Hour; Refrigerant Type R-22; Voltage Rating 208 to 230 Volt AC 60 Hertz 1-Phase; Current Rating 16.7 Amp (RLA), 96.7 Amp (LRA), 26 Amp (MCC); Suction Connection 3/4 Inch ODF Soldered; Discharge Connection 1/2 Inch ODF Soldered; Speed Rating 3500 RPM at 60 Hertz; Viscosity 32 Centipoise; Enclosure Rating IP22; Connection Type Brazed, Spade Terminal; Application Residential
Specifications
- BrandDanfoss
- Capacity41503
- Discharge ConnectionHorizontal
- Discharge ID1/2"
- Line Voltage (60Hz)240V
- Mounting ArrangementA
- Rated Voltage (60Hz)208/230
- RefrigerantR410A
- Suction ConnectionHorizontal
- Suction ID7/8"
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationAC/HP
- Compressor Capacity40000 btu
- Frequency60Hz
- Height16.5 in
- Length9.40945 in
- Liquid Line Size1/2 H15.9 in
- LRA115
- Max RLA21
- Max Watts12200
- Motor Phase1
- Oil Capacity0 ml
- Oil Recharge2.8 pints
- Run Capacitor60/370
- Shell Height16.5 in
- Shipping Height23 in
- Shipping Length11 in
- Shipping Point37406
- Shipping Weight73 lb
- Shipping Width10 in
- Suction Line Height10.8
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight69.11 lb
- Width9.4094488 in
