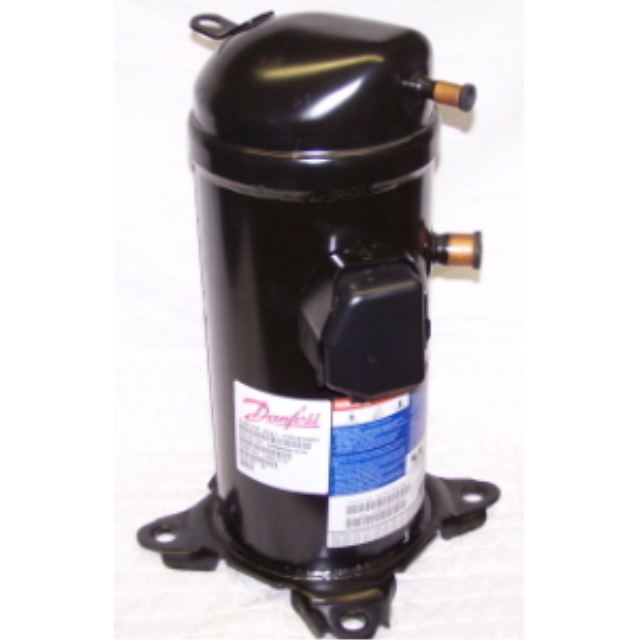

40000 BTU R22 208/230-1 Phase Danfoss Scroll Compressor
40000 BTU R22 208/230-1 Phase Danfoss Scroll Compressor
Description
Danfoss 40000 BTU/Hr, 208 to 230 VAC 60 Hz 1-Phase, 21 A, R-22, Internal Overload/Electronic Overcurrent Protection, Fixed Speed, Scroll Compressor for Air Conditioner
Specifications
- Item: Compressor, Fixed Speed
- Size: 184 Millimeter Diameter x 239 Millimeter Length x 239 Millimeter Width x 455 Millimeter Height
- Color/Finish: Black
- Used On Item: Air Conditioner
- Applicable Standard: UL, CE Motor Protection Internal Overload; Nominal Capacity 54000 BTU/Hour; Refrigerant Type R-22; Voltage Rating 208 to 230 Volt AC 60 Hertz 1-Phase; Current Rating 25 Amp (RLA), 150 Amp (LRA), 39 Amp (MCC); Suction Connection 7/8 Inch ODF Soldered; Discharge Connection 1/2 Inch ODF Soldered; Speed Rating 3500 RPM at 60 Hertz; Viscosity 32 Centipoise; Enclosure Rating IP22; Connection Type Brazed, Spade Terminal; Includes Alkylbenzene Oil, Relief Valve; Application Residential
Specifications
- BrandDanfoss
- Discharge ConnectionHorizontal
- Discharge ID1/2"
- Line Voltage (60Hz)240V
- Mounting ArrangementA
- Rated Voltage (60Hz)208/230
- RefrigerantR22
- Refrigerant Oil TypeAlkyl Benzene (ABMO)
- Suction ConnectionHorizontal
- Suction ID3/4"
- Variety TypeScroll
- Compressor Capacity40000 btu
- Discharge Line Height14.9
- Frequency60Hz
- Motor Phase1
- Shell Height15.5 in
- Shipping Weight73.4706 lb
- Suction Line Height9.8
