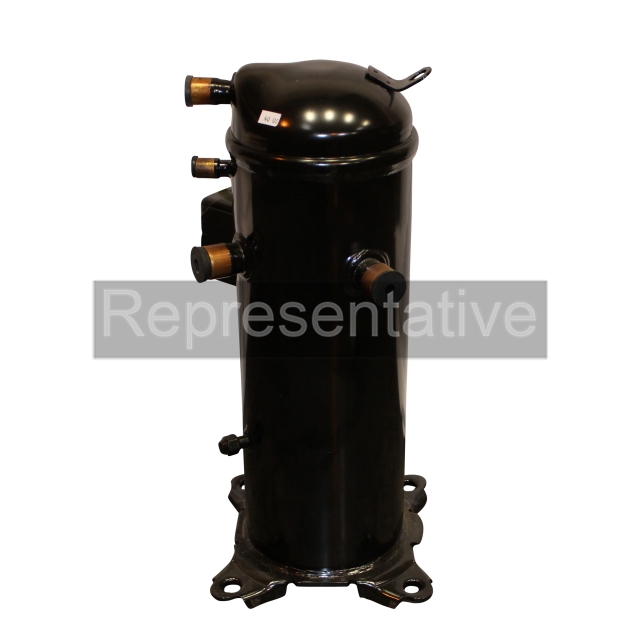

60000 BTU R22 208/230-1 Phase Danfoss Scroll Compressor
60000 BTU R22 208/230-1 Phase Danfoss Scroll Compressor
Description
Danfoss 60000 BTU/Hr, 208 to 230 VAC 60 Hz 1-Phase, 28.8 A, R-22, Internal Overload/Electronic Overcurrent Protection, Fixed Speed, Scroll Compressor for Air Conditioner
Specifications
- Item: Compressor
- Used On Item: Air Conditioner Motor Protection Internal Overload; Nominal Capacity 60000 BTU/Hour; Refrigerant Type R-22; Voltage Rating 500 Volt AC 50 Hertz, 575 Volt AC 60 Hertz 3-Phase; Connection Type Brazed, Screw; Includes PVE Oil; Application Residential
Specifications
- BrandDanfoss
- Discharge ConnectionHorizontal
- Discharge ID1/2"
- Line Voltage (60Hz)240V
- Mounting ArrangementA
- Rated Voltage (60Hz)208/230
- RefrigerantR22
- Suction ConnectionHorizontal
- Suction ID7/8"
- Variety TypeScroll
- Compressor Capacity60000 btu
- Discharge Line Height16.6
- Frequency60Hz
- Motor Phase1
- Shell Height17.2 in
- Shipping Height23 in
- Shipping Length11 in
- Shipping Weight93 lb
- Shipping Width10 in
- Suction Line Height11
