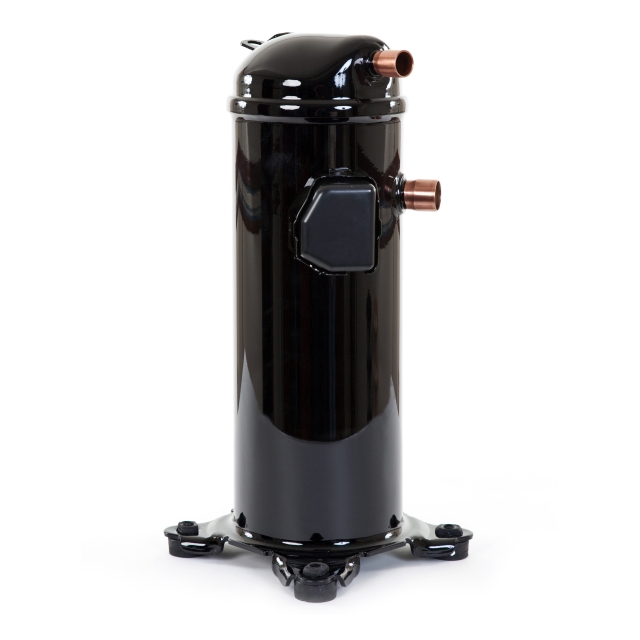

75000 BTU R22 208/230-3 Phase Danfoss Scroll Compressor
75000 BTU R22 208/230-3 Phase Danfoss Scroll Compressor
Description
Danfoss 75000 BTU/Hr, 200 to 220 VAC 50 Hz, 208 to 230 VAC 60 Hz 3-Phase, R-22, Internal Overload Protection, Scroll Compressor with Alkylbenzene Oil for Air Conditioner
Specifications
- Item: Compressor, Fixed Speed
- Size: 165 Millimeter Diameter x 239 Millimeter Length x 239 Millimeter Width x 439 Millimeter Height
- Color/Finish: Black
- Used On Item: Air Conditioner
- Applicable Standard: UL, CE Motor Protection Internal Overload/Thermostat/External Overload; Nominal Capacity 47000 BTU/Hour; Refrigerant Type R-407C; Voltage Rating 380 to 400 Volt AC 50 Hertz, 460 Volt AC 60 Hertz 3-Phase; Current Rating 7.7 Amp (RLA), 50 Amp (LRA), 12 Amp (MCC); Suction Connection 7/8 Inch ODF Soldered; Discharge Connection 1/2 Inch ODF Soldered; Speed Rating 2900 RPM at 50 Hertz, 3500 RPM at 60 Hertz; Viscosity 68 Centipoise; Enclosure Rating IP22; Connection Type Brazed, Spade Terminal; Application Residential
Specifications
- BrandDanfoss
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR22
- Refrigerant Oil TypeAlkyl Benzene (ABMO)
- Variety TypeScroll
- Compressor Capacity75000 btu
- Frequency60Hz
- Motor Phase3
