COMPRESSOR
COMPRESSOR
Description

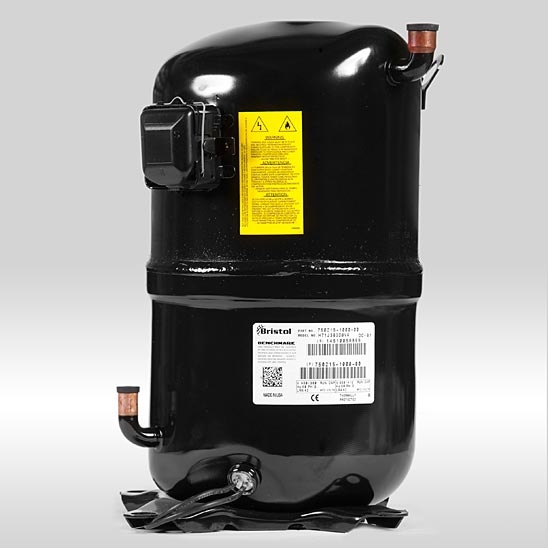

Bristol Compressors 4.8" x 8" Mounting Feet, 20000 BTU/Hr, 380/415 VAC 50 Hz, 460 VAC 60 Hz 3-Phase, 3.7 A, 2165 W, R-404A, 3-Phase Across the Line Motor, Internal Line Break/Electronic Overcurrent Protection, Reciprocating Compressor for Medium Temperature Refrigerant
Features & Benefits
- Oil Equalization Port and Sight Glass
Specifications
- Item: Compressor
- Used On Item: Medium/High Temperature Air Conditioner Nominal Capacity 22000 BTU/Hour; Refrigerant Type R-22; Voltage Rating 208 to 230 Volt AC 60 Hertz 1-Phase; Displacement 2.33 Cubic Inch per Revolution; Includes Mineral Oil
Documents
Specifications
- BrandBristol
- Capacity15800
- Discharge ConnectionUp
- Discharge ID3/8"
- RefrigerantR404A
- Suction ConnectionUp
- Suction ID5/8"
- Suction Line Size5/8"
- Variety TypeReciprocating
- Compressor Capacity15800 btu
- Discharge Line Height2.9
- Frequency60Hz
- Height13.2 in
- Liquid Line Size3/8 in
- Max RLA3.7
- Motor Phase3
- Shell Height13.2 in
- Shipping Height13.2 in
- Shipping Point37406
- Shipping Weight66.5 lb
- Suction Line Height12.8
- TechnologyRecip
- TypeHerm
- Voltage460
