COMPRESSOR
COMPRESSOR
Description

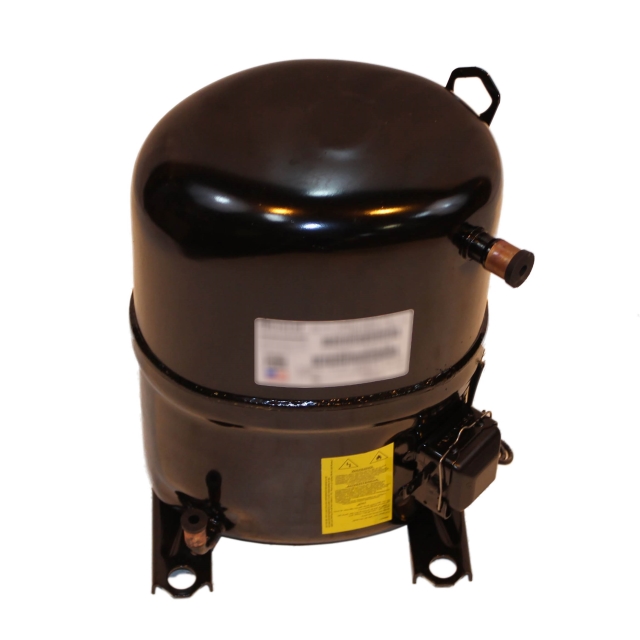

This is a genuine Factory Authorized PartTM - Model# P032-3553. Below are some of the many benefits of purchasing FAP parts.
Â
Ease of Install and Service
Provides exact drop-in replacement
Performance
Meets exact design specifications for optimum system performance
Proprietary
Design specifications are proprietary and not available to other parts manufacturers
Quality
Meets exact part design life testing for maximum reliability and durability
Ratings
Maintains agency listings and safety standards
Warranty
Preserves equipment warranty
Replacement for
Documents
There are no documents available.
Specifications
- BrandBristol
- Capacity35000
- Discharge ConnectionUp
- Discharge ID1/2"
- Line Voltage (60Hz)240V
- Mounting ArrangementA
- RefrigerantR22
- Suction ConnectionHorizontal
- Suction ID3/4"
- Suction Line Size3/4"
- Variety TypeReciprocating
- ApplicationAC/HP
- Compressor Capacity35000 btu
- Discharge Line Height2.9
- Frequency60Hz
- Height14.5 in
- Liquid Line Size1/2 U 2.9 in
- LRA78
- Max RLA9.6
- Motor Phase3
- Oil Capacity0 ml
- Run CapacitorN/A
- Shell Height14.5 in
- Shipping Height15.9 in
- Shipping Length13.5 in
- Shipping Point37406
- Shipping Weight68.4 lb
- Shipping Width13 in
- Suction Line Height12.2
- TechnologyRecip
- TypeHerm
- Voltage208/230
