Features & Benefits

• Danfoss H-series scroll compressors are manufactured using the most advanced machining, assembly and process control techniques
• The highest standards of quality were the first priority when designing the H-series compressors
• These high standards resulted in an incredibly efficient product with the highest possible reliability, all while operating at a low sound level
• With no threaded fasteners, half the hermetic welds and one-third fewer parts than competitor models, Danfoss H-series scroll compressors install quickly and easily
• All H-series compressors feature a design with minimal internal parts, decreasing the overall weight and reducing operation noise by up to three decibels compared to similar competitor models
• With liquid and suction line connections and a bolt pattern that align with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be drop-in replacements for compressors made by nearly any company
• Danfoss H-series scroll compressors operate equally well in either cooling or heat pump applications
• With high energy savings and low environmental impact, H-series compressors are the perfect solution to meet today's high expectations, especially in the renovation sector
• Wide range with wide application envelope for varied applications
• Standard dimensions and tubing, ideal for both new installations and replacement markets
• Lead-free bearings ensure high reliability even with low lubrication
• Discharge check valve prevents reverse rotation, resulting in no shutdown noise
• Oil injection ensures optimal lubrication
• Minimal environment impact, even in extreme operating conditions
• Low sound level

Specifications

• Item: Scroll Compressor, High Temperature, Internal Motor Protection, Brazed Connection, Screw Terminal
• Size: 239 Millimeter Width x 239 Millimeter Height
• Color/Finish: Black or Blue
• Used On Item: Air Conditioner
• Solder ODF Connection 7/8 Inch x 1/2 Inch
• Motor Voltage Rating 380 to 400 Volt AC 50 Hertz 3-Phase and 460 Volt AC 60 Hertz 3-Phase
• Current Rating 82 Amp (LRA), 15 Amp (MCC), 12.4 Amp (Operating)
• Input Power Rating 5.1 Kilowatt at 50 Hertz, 6.08 Kilowatt at 60 Hertz
• Energy Efficiency 3.08 (COP)/10.5 (EER) 50 Hertz, 3.12 (COP)/10.6 (EER) 60 Hertz
• Refrigerant Type R-22, R-407C
• Oil Type PVE
• Nominal Capacity 68 BTU/Hour
• Design Optimized for 45 Deg F/130 Deg F
• Application Light Commercial

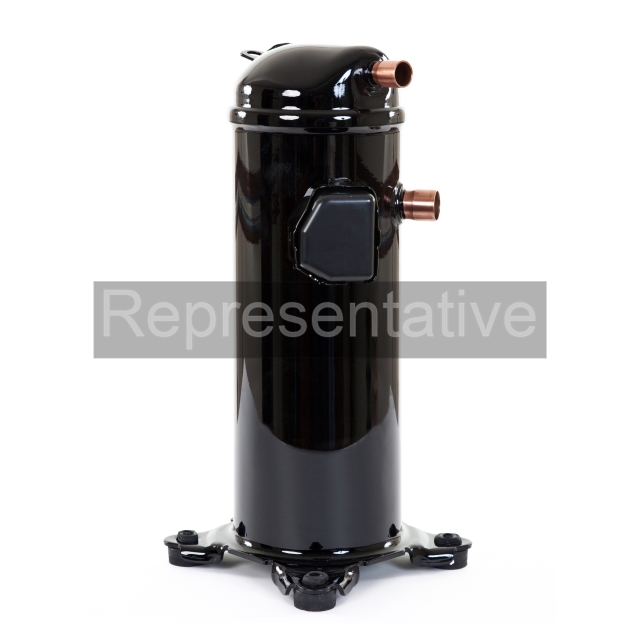

• HLM068T4LC6 - 68000 BTU R22 460-3 Phase Danfoss Scroll Compressor
