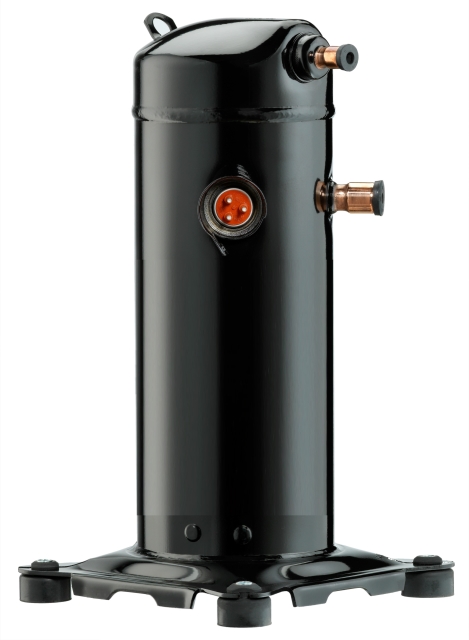

60000 BTU R22 575-3 Phase Danfoss Scroll Compressor
60000 BTU R22 575-3 Phase Danfoss Scroll Compressor
Description
Danfoss 60000 BTU/Hr, 500 VAC 50 Hz, 575 VAC 60 Hz 3-Phase, 7.4 A, R-22, Internal Overload/Electronic Overcurrent Protection, Scroll Compressor for Air Conditioner
Specifications
- Item: Compressor, Fixed Speed
- Size: 184 Millimeter Diameter x 239 Millimeter Length x 239 Millimeter Width x 455 Millimeter Height
- Color/Finish: Black
- Used On Item: Air Conditioner
- Applicable Standard: UL, CE Motor Protection Internal Overload/Electronic Overcurrent; Nominal Capacity 60000 BTU/Hour; Refrigerant Type R-407C; Voltage Rating 208 to 230 Volt AC 60 Hertz 1-Phase; Current Rating 28.8 Amp (RLA), 62 Amp (LRA), 45 Amp (MCC); Suction Connection 7/8 Inch ODF Soldered; Discharge Connection 1/2 Inch ODF Soldered; Speed Rating 3500 RPM at 60 Hertz; Viscosity 32 Centipoise; Enclosure Rating IP22; Connection Type Brazed, Screw; Application Residential
Documents
Specifications
- BrandDanfoss
- Capacity57807
- Line Voltage (60Hz)600V
- Rated Voltage (60Hz)575
- RefrigerantR22
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationAC/HP
- Compressor Capacity60000 btu
- Frequency60
- Height17.16 in
- Liquid Line Size1/2 H 16.6 in
- Max RLA7.4
- Motor Phase3
- Run CapacitorN/A
- Shipping Height12 in
- Shipping Length19 in
- Shipping Weight71 lb
- Shipping Width12 in
- TechnologyScroll
- TypeHerm
- Voltage575
