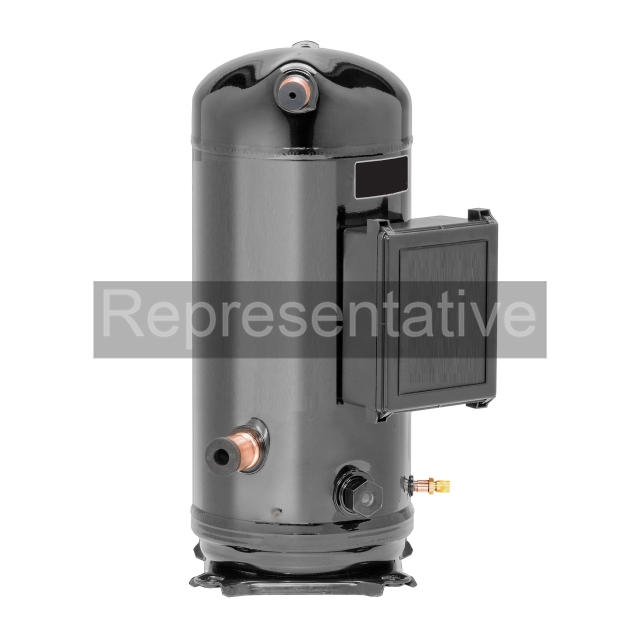

SCROLL COMPRESSOR
SCROLL COMPRESSOR
Description
ZP235KCE-TEC-750
Z = Scroll Compressor
P = A/C Duty - R410A
235K = 235000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
E = External Module with CoreSenseTM Diagnostics/ Protection
C = 200-3-50 / 208/230-3-60
750 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
235K = 235000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
E = External Module with CoreSenseTM Diagnostics/ Protection
C = 200-3-50 / 208/230-3-60
750 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity235000
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Variety TypeScroll
- Compressor Capacity23000 btu
- Frequency50Hz, 60Hz
- Height28.6 in
- Length16.8 in
- Liquid Line Size1 3/8 in
- LRA505.0
- Max RLA82.4
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge9.25 pints
- Shipping Height31 in
- Shipping Length30 in
- Shipping Point37406
- Shipping Weight348 lb
- Shipping Width29 in
- Suction Line Size1 5/8 in
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight310 lb
- Width14.8 in
