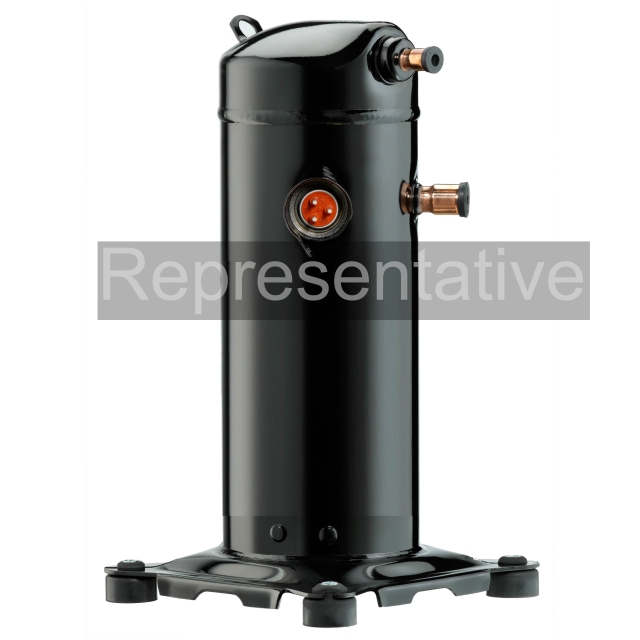

SCROLL COMPRESSOR
SCROLL COMPRESSOR
Description
ZP34K5E-TF5-899
Z = Scroll Compressor
P = A/C Duty - R410A
34K = 34000 BTU
5 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
899 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
34K = 34000 BTU
5 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
899 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity34600
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationAC/HP
- Compressor Capacity34000 btu
- Frequency50Hz, 60Hz
- Height16.94 in
- Length9.56 in
- Liquid Line Size1/2 Stub in
- LRA88.0
- Max RLA14.7
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge2.375 pints
- Run CapacitorN/A
- Shipping Height21 in
- Shipping Length14.5 in
- Shipping Point37406
- Shipping Weight55 lb
- Shipping Width13.75 in
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight63.6 lb
- Width9.56 in
