SCROLL COMPRESSOR
SCROLL COMPRESSOR
Description

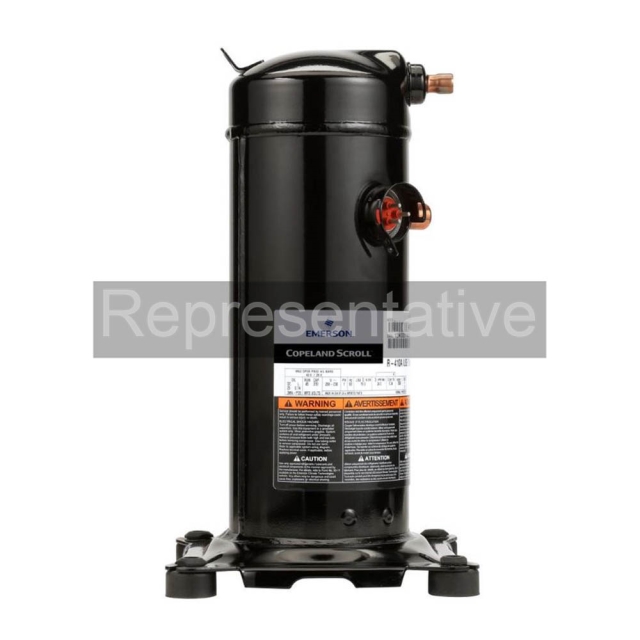

Emerson Electric Co. (Copeland) Scroll™ 6.5" x 17", 7/8" ODF Soldered Suction, 1/2" ODF Soldered Discharge, 200 VAC 50 Hz 1-Phase, 208 to 230 VAC 60 Hz, 57000 BTU/Hr, R-410A, Scroll Compressor with POE Oil and Internal Inherent Protection for Air Conditioner
Specifications
- Size: 6.5 Inch Diameter x 17 Inch Height
- Used On Item: High Temperature Air Conditioner
- Connection Size 7/8 Inch ODF Soldered (Suction), 1/2 Inch ODF Soldered (Discharge)
- Refrigerant Type R-410A
- Nominal Capacity 57000 BTU/Hour
- Voltage Rating 200 Volt AC 50 Hertz, 208 to 230 Volt AC 60 Hertz 1-Phase
- Motor Type 1-Phase PSC
- Includes POE Oil, Internal Inherent Protection
Documents
There are no documents available.
Specifications
- BrandCopeland
- Capacity57000
- Discharge ConnectionHorizontal
- Discharge ID1/2"
- Line Voltage (60Hz)240V
- Mounting ArrangementA
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionHorizontal
- Suction ID7/8"
- Suction Line Size7/8"
- Variety TypeScroll
- Compressor Capacity57000 btu
- Discharge Line Height15.87
- Frequency50Hz, 60Hz
- Height16.9 in
- Length9.69 in
- Liquid Line Size1/2 H 15.87 in
- LRA178.0
- Max RLA31.6
- Motor Phase1
- Oil Capacity0 ml
- Oil Recharge2.375 pints
- Run Capacitor80/370 µF/v
- Shell Height16.9 in
- Shipping Height21 in
- Shipping Length13.25 in
- Shipping Point37406
- Shipping Weight72 lb
- Shipping Width14.5 in
- Start Capacitor88-106/330 µF/v
- Suction Line Height11.68
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight75.6 lb
- Width9.69 in
