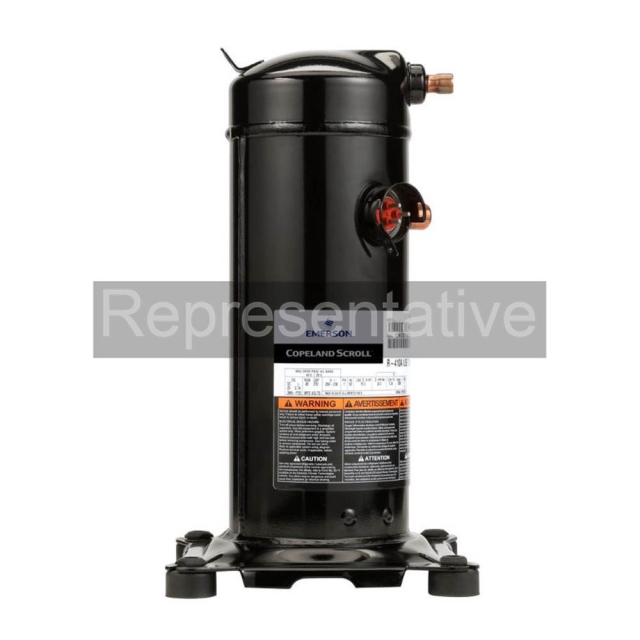

61000 BTU R410A 575-3 Phase Copeland Scroll Compressor
61000 BTU R410A 575-3 Phase Copeland Scroll Compressor
Description
ZP61KCE-TFE-7M7
Z = Scroll Compressor
P = A/C Duty - R410A
61K = 61000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
E = 500-3-50 / 575-3-60
7M7 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
61K = 61000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
E = 500-3-50 / 575-3-60
7M7 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Line Voltage (60Hz)600V
- Rated Voltage (60Hz)575
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Variety TypeScroll
- Compressor Capacity61000 btu
- Frequency60Hz
- Motor Phase3
- Shipping Height20 in
- Shipping Length14 in
- Shipping Weight107 lb
- Shipping Width15 in
