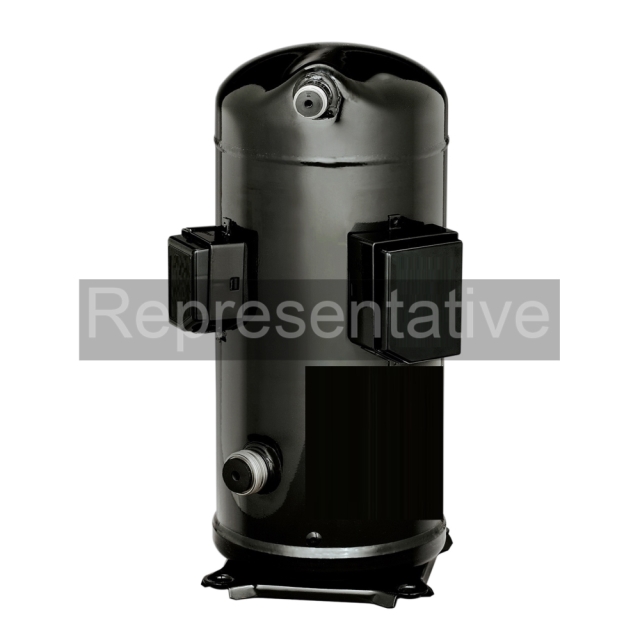

SCROLL COMPRESSOR
SCROLL COMPRESSOR
Description
ZPD137KCE-TF7-855
Z = Scroll Compressor
P = A/C Duty - R410A
D = Digital
137K = 137000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
7 = 380-3-60
855 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
D = Digital
137K = 137000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
7 = 380-3-60
855 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Documents
Specifications
- BrandCopeland
- Line Voltage (60Hz)480V
- Rated Voltage (60Hz)380
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Variety TypeScroll
- Compressor Capacity137000 btu
- Motor Phase3
- Shipping Height27 in
- Shipping Length18 in
- Shipping Weight155 lb
- Shipping Width16 in
