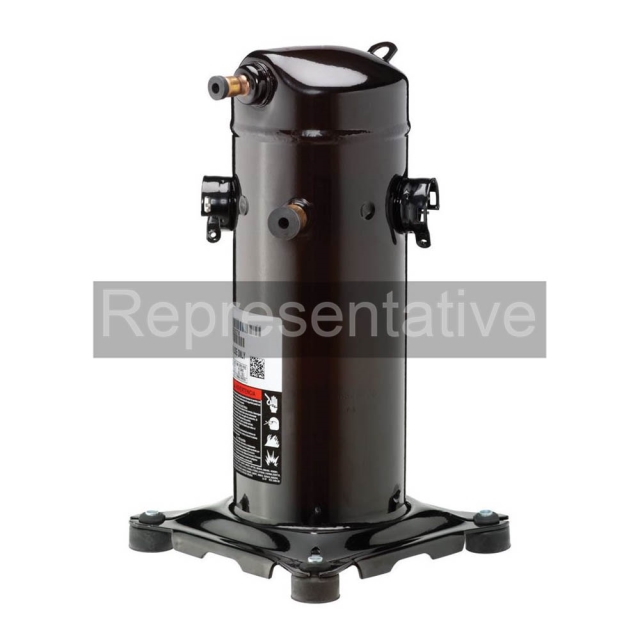

30000 BTU R410A 208/230-1 Phase Copeland Scroll Compressor
30000 BTU R410A 208/230-1 Phase Copeland Scroll Compressor
Description
Emerson Electric Co. (Copeland) Copeland Scroll™ 30000 BTU, 200 VAC 50 Hz, 208/230 VAC 60 Hz 1-Phase, 1 to 5 HP, R-410A, 19.7 EER, 1-Phase Permanent Split Capacitor Motor, Internal Inherent Protection, Ultra Tech Modulation, 2-Stage, Scroll Compressor with Polyol Ester Oil for Air Conditioner
The 2nd generation Copeland Scroll two-stage compressor is built upon the proven Copeland Scroll platform and is typically used in split and packaged air conditioning or heat pump systems.
Specifications
- Item: Compressor, Ultra Tech Modulation, 2-Stage
- Used On Item: Air Conditioner Motor Type 1-Phase Permanent Split Capacitor; Motor Protection Internal Inherent; Nominal Capacity 49000 BTU; Refrigerant Type R-410A; Voltage Rating 200 Volt AC 50 Hertz, 208/230 Volt AC 60 Hertz 1-Phase; Includes Polyol Ester Oil
Specifications
- BrandCopeland
- Capacity30800-37900
- CFM3.57
- HP2.5
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR410A
- Suction Line Size3/4"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity30000 btu
- Frequency50/60
- Height16.52 in
- Length9.69 in
- Liquid Line Size1/2 in
- LRA84.2
- Max RLA14.1
- Max Watts2930
- Motor Phase1
- Oil Capacity0 ml
- Oil Recharge1.31 pints
- Run Capacitor45/370
- Shipping Height13.12 in
- Shipping Length20 in
- Shipping Point37406
- Shipping Weight56.2 lb
- Shipping Width14.62 in
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight51 lb
- Width9.69 in
