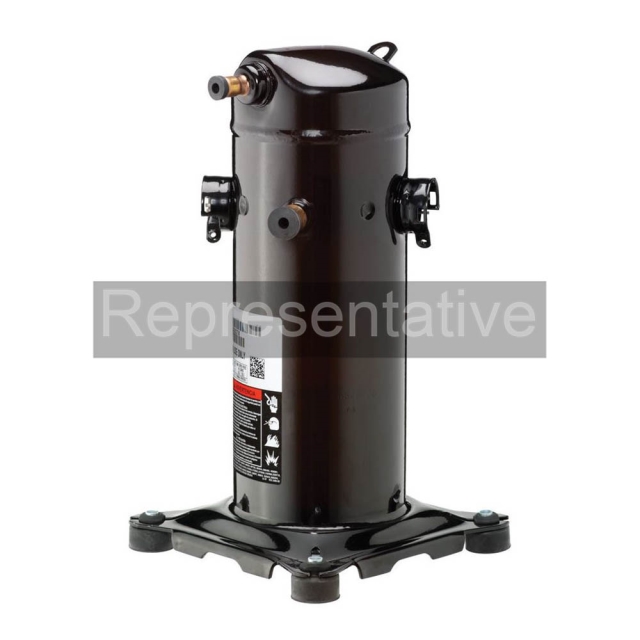

40000 BTU R410A 208/230-1 Phase Copeland Scroll Compressor
40000 BTU R410A 208/230-1 Phase Copeland Scroll Compressor
Description
Emerson Electric Co. (Copeland) Copeland Scroll™ 40000 BTU, 200 VAC 50 Hz, 208/230 VAC 60 Hz 1-Phase, R-410A, 1-Phase Permanent Split Capacitor Motor, Internal Inherent Protection, Ultra Tech Modulation, 2-Stage, Scroll Compressor with Polyol Ester Oil for Air Conditioner
Features & Benefits
- ASTP (Advanced Scroll Temperature Protection) to protect compressor from high discharge temperatures
- Light, compact design
- T-box Service
Specifications
- Item: Scroll Compressor
- Used On Item: High Temperature Air Conditioner Voltage Rating 200/220 Volt AC 50 Hertz/200/230 Volt AC 60 Hertz 3-Phase; Power Rating 7 to 15 HP; Capacity 70500 to 142000 BTU/Hour; Refrigerant Type R-134A/R-22/R-407C; Oil Type 3MA POE; Motor Type 3-Lead Single Voltage General; Motor Protection Type Internal Inherent; Cooling Efficiency 11.6 EER
Specifications
- BrandCopeland
- Capacity41500-50900
- CFM4.80
- HP3.5
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR410A
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity40000 btu
- Frequency60
- Height16.91 in
- Length9.69 in
- Liquid Line Size1/2 in
- LRA122.1
- Max RLA20.4
- Max Watts3850
- Motor Phase1
- Oil Capacity0 ml
- Oil Recharge2.25 pints
- Run Capacitor35/370
- Shipping Height13.12 in
- Shipping Length20 in
- Shipping Point37406
- Shipping Weight54 lb
- Shipping Width14.62 in
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight77 lb
- Width9.69 in
