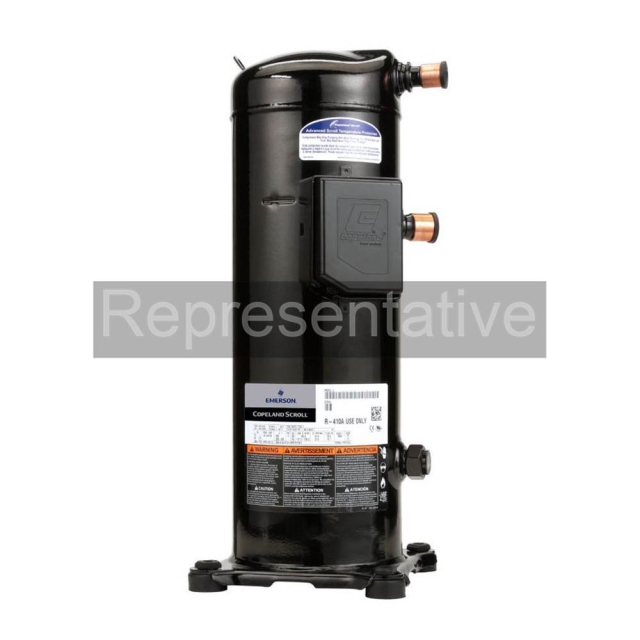

122000 BTU R410A 208/230-3 Phase Copeland Scroll Compressor
122000 BTU R410A 208/230-3 Phase Copeland Scroll Compressor
Description
ZP122KCE-TF5-855
Z = Scroll Compressor
P = A/C Duty - R410A
122K = 122000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
855 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
122K = 122000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
855 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity110500-124000
- CFM13.88
- HP10
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR410A
- Suction Line Size1-1/8"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity122000 btu
- Frequency60
- Height22 in
- Length11.7 in
- Liquid Line Size7/8 in
- LRA240
- Max RLA34
- Max Watts11000
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge5.06 pints
- Shipping Height34 in
- Shipping Length14.5 in
- Shipping Point37406
- Shipping Weight149 lb
- Shipping Width17 in
- TechnologyScroll
- TypeHerm
- Voltage200/230
- Weight107 lb
- Width10.33 in
