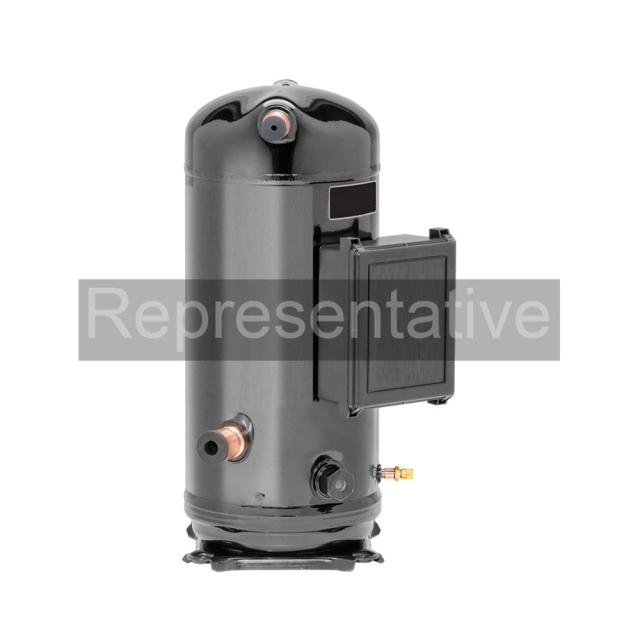

154000 BTU R410A 460-3 Phase Copeland Scroll Compressor
154000 BTU R410A 460-3 Phase Copeland Scroll Compressor
Description
ZP154KCE-TED-950
Z = Scroll Compressor
P = A/C Duty - R410A
154K = 154000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
E = External Module with CoreSenseTM Diagnostics/ Protection
D = 380/420-3-50 / 460-3-60
950 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
154K = 154000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
E = External Module with CoreSenseTM Diagnostics/ Protection
D = 380/420-3-50 / 460-3-60
950 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Documents
There are no documents available.
Specifications
- BrandCopeland
- Capacity155000
- Discharge ConnectionHorizontal
- Discharge ID7/8"
- Line Voltage (60Hz)480V
- Mounting ArrangementA
- Rated Voltage (60Hz)460
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionHorizontal
- Suction ID1-3/8"
- Variety TypeScroll
- ApplicationA/C, HP
- Compressor Capacity154000 btu
- Discharge Line Height20.46
- Frequency50Hz, 60Hz
- Height22.21 in
- Length12.93 in
- Liquid Line Size7/8 in
- LRA150
- Max RLA25.7
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge6.875 pints
- Run CapacitorN/A
- Shell Height21.7 in
- Shipping Height26.5 in
- Shipping Length15 in
- Shipping Point37406
- Shipping Weight154 lb
- Shipping Width18.25 in
- Suction Line Height5.53
- Suction Line Size1 3/8 in
- TechnologyScroll
- TypeHerm
- Voltage460
- Weight143 lb
- Width11.73 in
