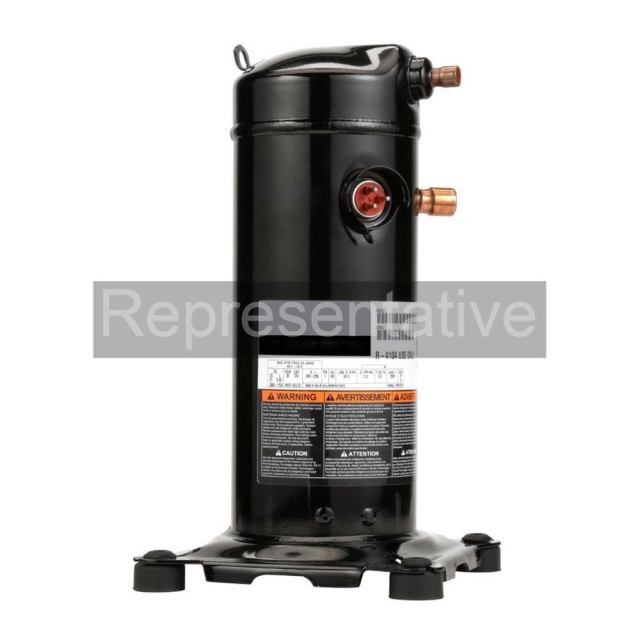

20000 BTU R410A 200/230-3 Phase Copeland Scroll Compressor
20000 BTU R410A 200/230-3 Phase Copeland Scroll Compressor
Description
ZP20K5E-TF5-830
Z = Scroll Compressor
P = A/C Duty - R410A
20K = 20000 BTU
5 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
830 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
20K = 20000 BTU
5 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
830 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity20000
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)200/230
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Suction Line Size3/4"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity20000 btu
- Frequency50Hz, 60Hz
- Height15.27 in
- Length9.56 in
- Liquid Line Size1/2 H 14.15 in
- LRA55.4
- Max RLA7.9
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge1.3125 pints
- Run CapacitorN/A
- Shipping Height15.27 in
- Shipping Length9.56 in
- Shipping Point37406
- Shipping Weight47.5 lb
- Shipping Width9.56 in
- Start CapacitorN/A
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight47.5 lb
- Width9.56 in
