Copeland

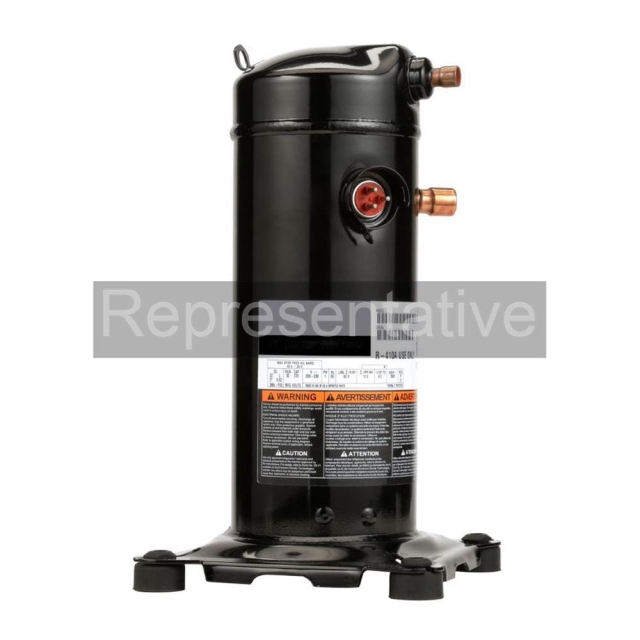

28000 BTU R410A 208/230-3 Phase Copeland Scroll Compressor

SKU:ZP28K5E-TF5-830
Copeland

28000 BTU R410A 208/230-3 Phase Copeland Scroll Compressor

SKU:ZP28K5E-TF5-830

    Description

    Emerson Electric Co. (Copeland) Scrollâ„¢ 5.5" x 15.3", 3/4" ODF Soldered Suction, 1/2" ODF Soldered Discharge, 200 to 220 VAC 50 Hz 3-Phase, 200 to 230 VAC 60 Hz, 28000 BTU/Hr, R-410A, Scroll Compressor with POE Oil and Internal Inherent Protection for Air Conditioner

    Specifications

    • Size: 5.5 Inch Diameter x 15.3 Inch Height
    • Used On Item: High Temperature Air Conditioner
    • Connection Size 3/4 Inch ODF Soldered (Suction), 1/2 Inch ODF Soldered (Discharge)
    • Refrigerant Type R-410A
    • Nominal Capacity 28000 BTU/Hour
    • Voltage Rating 200 to 220 Volt AC 50 Hertz, 200 to 230 Volt AC 60 Hertz 3-Phase
    • Motor Type 3-Lead 3-Phase
    • Cooling Efficiency 10.1 EER
    • Includes POE Oil, Internal Inherent Protection

    Documents

    There are no documents available.

    Specifications

    • BrandCopeland
    • Capacity27800
    • Discharge ConnectionHorizontal
    • Discharge ID1/2"
    • Line Voltage (60Hz)240V
    • Rated Voltage (60Hz)208/230
    • RefrigerantR410A
    • Refrigerant Oil TypePolyol Ester (POE)
    • Suction ConnectionHorizontal
    • Suction ID3/4"
    • Suction Line Size3/4"
    • Variety TypeScroll
    • ApplicationA/C, HP
    • Compressor Capacity28000 btu
    • Compressor EER10.1
    • Discharge Line Height14.15
    • Frequency50Hz, 60Hz
    • Height15.27 in
    • Length9.56 in
    • Liquid Line Size1/2 in
    • LRA71
    • Max RLA11.1
    • Motor Phase3
    • Oil Capacity0 ml
    • Oil Recharge1.3125 pints
    • RLA11.1
    • Run CapacitorN/A
    • Shipping Height25 in
    • Shipping Length16 in
    • Shipping Point37406
    • Shipping Weight53 lb
    • Shipping Width20 in
    • Start CapacitorN/A
    • Suction Line Height10.3
    • TechnologyScroll
    • TypeHerm
    • Voltage208/230
    • Weight48.4 lb
    • Width9.56 in
