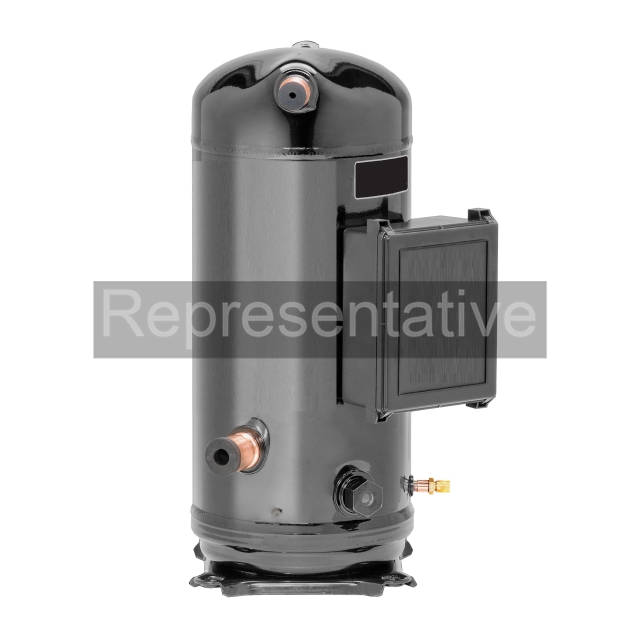

29000 BTU R410A 208/230-3 Phase Copeland Scroll Compressor
29000 BTU R410A 208/230-3 Phase Copeland Scroll Compressor
Description
ZP295KCE-TWC-750
Z = Scroll Compressor
P = A/C Duty - R410A
295K = 295000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
W = External Electronic Protection
C = 200-3-50 / 208/230-3-60
750 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
295K = 295000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
W = External Electronic Protection
C = 200-3-50 / 208/230-3-60
750 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity294000
- Discharge ConnectionHorizontal
- Discharge ID1-3/8"
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionHorizontal
- Suction ID1-5/8"
- Variety TypeScroll
- ApplicationA/C, HP
- Compressor Capacity29000 btu
- Compressor EER11.1
- Discharge Line Height25.97
- Frequency50Hz, 60Hz
- Height28.5 in
- Liquid Line Size1 3/8 in
- LRA605
- Max RLA95
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge13.75 pints
- RLA95
- Shipping Height32 in
- Shipping Length42 in
- Shipping Point37406
- Shipping Weight396 lb
- Shipping Width27 in
- Suction Line Height14.77
- Suction Line Size1 5/8 in
- TechnologyScroll
- TypeHerm
- Voltage208/230
- Weight353 lb
