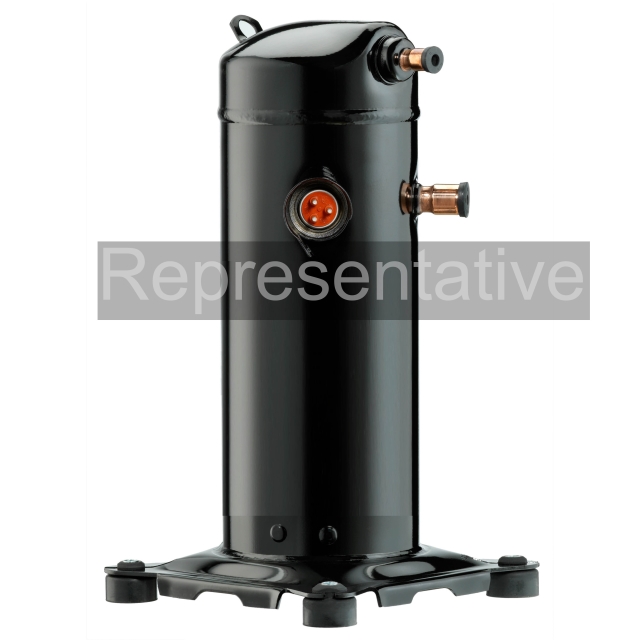

32000 BTU R410A 460-3 Phase Copeland Scroll Compressor
32000 BTU R410A 460-3 Phase Copeland Scroll Compressor
Description
ZP32K3E-TFD-930
Z = Scroll Compressor
P = A/C Duty - R410A
32K = 32000 BTU
3 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
930 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
32K = 32000 BTU
3 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
930 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity30500
- Discharge ConnectionHorizontal
- Discharge ID1/2"
- Line Voltage (60Hz)480V
- Rated Voltage (60Hz)460
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionHorizontal
- Suction ID3/4"
- Suction Line Size3/4"
- Variety TypeScroll
- ApplicationAC/HP
- Compressor Capacity32000 btu
- Compressor EER9.8
- Discharge Line Height14.09
- Frequency60Hz
- Height15.6 in
- Liquid Line Size1/2 H 14.09 in
- LRA35
- Max RLA5.7
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge2.375 pints
- RLA5.7
- Run CapacitorN/A
- Shipping Height21 in
- Shipping Length13 in
- Shipping Point37406
- Shipping Weight64 lb
- Shipping Width14.5 in
- Suction Line Height10.4
- TechnologyScroll
- TypeHerm
- Voltage460
- Weight62 lb
