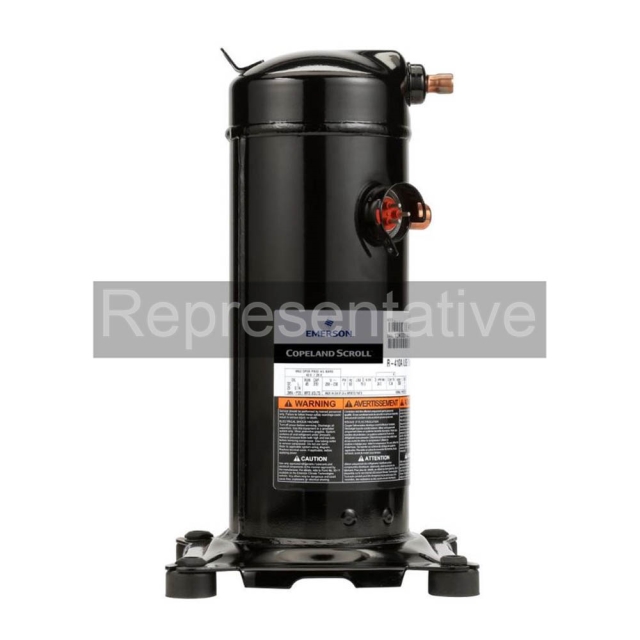

57000 BTU R410A 460-3 Phase Copeland Scroll Compressor
57000 BTU R410A 460-3 Phase Copeland Scroll Compressor
Description
ZP57K3E-TFD-930
Z = Scroll Compressor
P = A/C Duty - R410A
57K = 57000 BTU
3 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
930 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
57K = 57000 BTU
3 = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
930 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity58000
- Discharge ConnectionHorizontal
- Discharge ID1/2"
- HP4.8
- Line Voltage (60Hz)480V
- Mounting ArrangementA
- Rated Voltage (60Hz)460
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionHorizontal
- Suction ID7/8"
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationAC/HP
- Compressor Capacity57000 btu
- Discharge Line Height16.17
- Frequency50Hz, 60Hz
- Height17.9 in
- Length9.69 in
- Liquid Line Size1/2 H 16.17 in
- LRA75.0
- Max RLA10.7
- Max Watts4610
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge3.25 pints
- Run CapacitorN/A
- Shell Height17.9 in
- Shipping Height20 in
- Shipping Length13.25 in
- Shipping Point37406
- Shipping Weight92 lb
- Shipping Width14.5 in
- Suction Line Height11.73
- TechnologyScroll
- TypeHerm
- Voltage460
- Weight92 lb
- Width9.69 in
