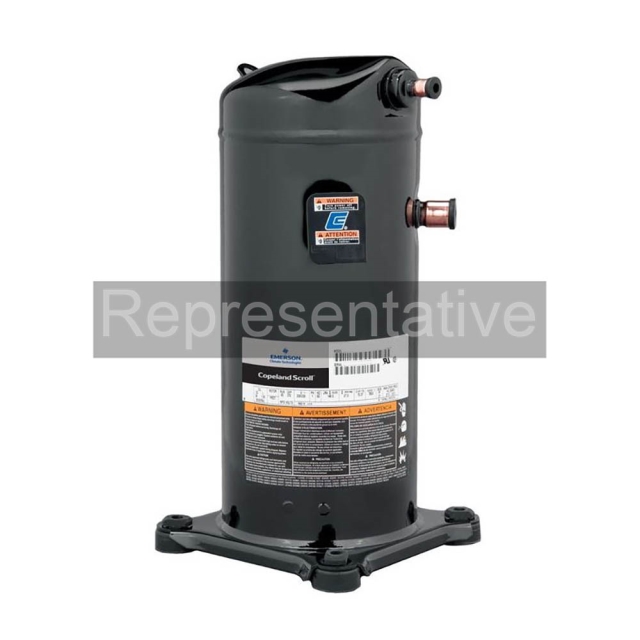

72000 BTU R410A 208/230-3 Phase Copeland Scroll Compressor
72000 BTU R410A 208/230-3 Phase Copeland Scroll Compressor
Description
ZP72KCE-TF5-886
Z = Scroll Compressor
P = A/C Duty - R410A
72K = 72000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
886 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
72K = 72000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
5 = 200/230-3 (50/60)
886 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity72000-88500
- CFM8.3
- HP6
- Line Voltage (60Hz)240V
- Rated Voltage (60Hz)208/230
- RefrigerantR410A
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity72000 btu
- Frequency60
- Height17.91 in
- Length9.69 in
- Liquid Line Size1/2 in
- LRA164
- Max RLA23.2
- Max Watts6750
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge3.5 pints
- Shipping Height17.91 in
- Shipping Length9.69 in
- Shipping Point37406
- Shipping Weight88 lb
- Shipping Width9.69 in
- TechnologyScroll
- TypeHerm
- Voltage200/220/230
- Weight88 lb
- Width9.69 in
