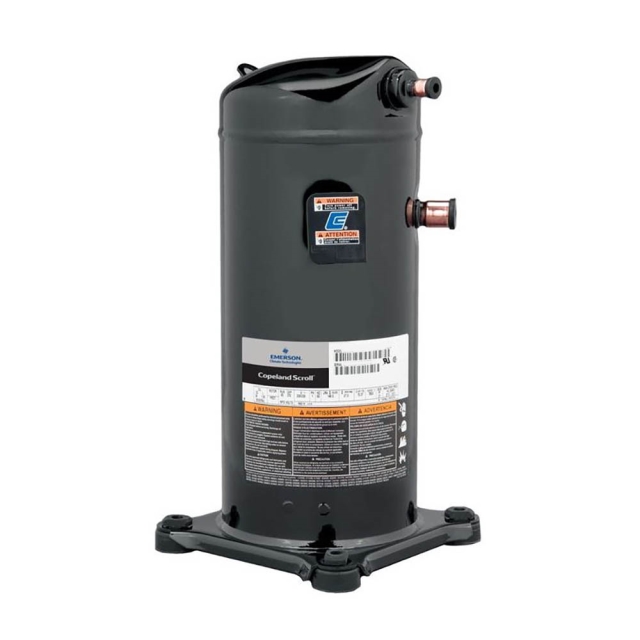

72000 BTU R410A 380-3 Phase Copeland Scroll Compressor
72000 BTU R410A 380-3 Phase Copeland Scroll Compressor
Description
ZP72KCE-TF7-830
Z = Scroll Compressor
P = A/C Duty - R410A
72K = 72000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
7 = 380-3-60
830 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
72K = 72000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
7 = 380-3-60
830 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity71000
- Line Voltage (60Hz)480V
- Rated Voltage (60Hz)380
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Suction Line Size7/8"
- Variety TypeScroll
- Compressor Capacity72000 btu
- Frequency60
- Height17.91 in
- Length9.69 in
- Liquid Line Size1/2 in
- LRA73
- Max RLA13.6
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge3.5 pints
- Shipping Height25 in
- Shipping Length16 in
- Shipping Weight115 lb
- Shipping Width20 in
- TechnologyScroll
- TypeHerm
- Voltage380
- Weight90.2 lb
- Width9.69 in
