Description

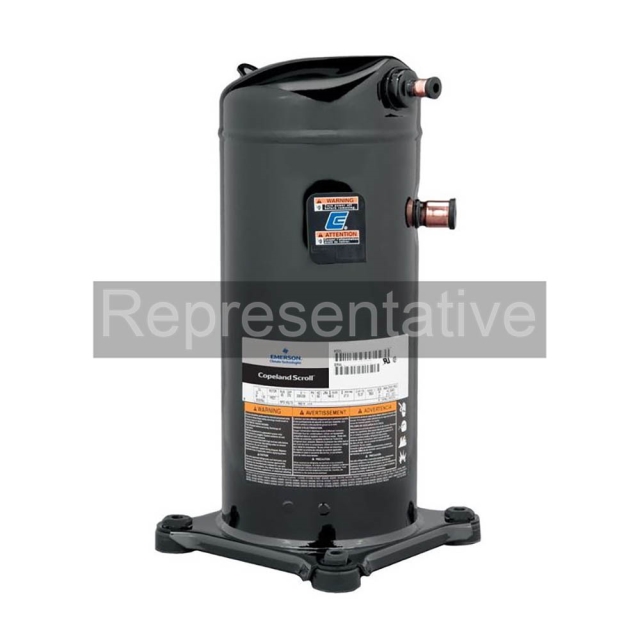

ZP72KCE-TFD-950
Z = Scroll Compressor
P = A/C Duty - R410A
72K = 72000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
950 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
72K = 72000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
950 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Specifications
- BrandCopeland
- Capacity72000
- HP6
- Line Voltage (60Hz)480V
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationA/C, HP
- Compressor Capacity72000 btu
- Frequency50Hz, 60Hz
- Height17.91 in
- Length9.69 in
- Liquid Line Size1/2 H 16.17 in
- LRA75.0
- Max RLA12.5
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge3.5 pints
- Run CapacitorN/A
- Shipping Height13.5 in
- Shipping Length20 in
- Shipping Point37406
- Shipping Weight87.5 lb
- Shipping Width14 in
- TechnologyScroll
- TypeHerm
- Voltage460
- Weight88 lb
- Width9.69 in
