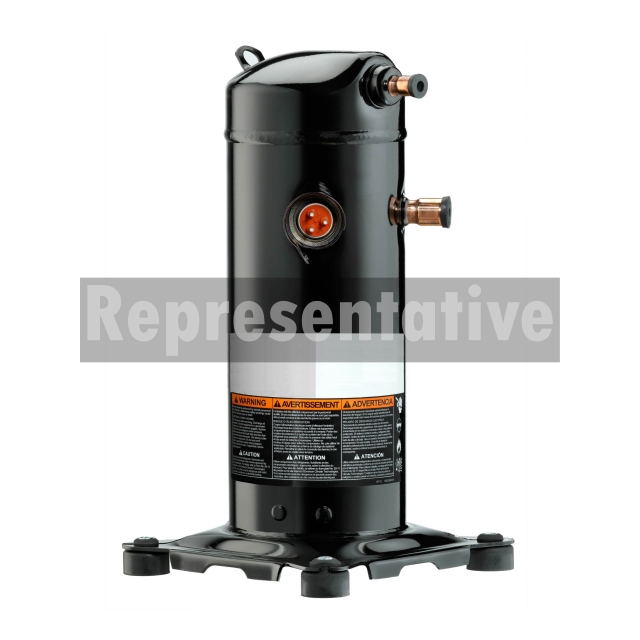

83000 BTU R410A 380-3 Phase Copeland Scroll Compressor
83000 BTU R410A 380-3 Phase Copeland Scroll Compressor
Description
Emerson Electric Co. (Copeland) Copeland Scroll™ 83000 BTU, 380 VAC 60 Hz 3-Phase, 4 to 6 HP, R-410A, 10.8 EER, 3-Phase 3-Lead Single Voltage Motor, Internal Inherent Protection, Scroll Compressor with Polyol Ester Oil for High Temperature and Ultra High Pressure Air Conditioner
Copeland Scroll ZPKC Quest compressor is designed for broad R-410a applicability in split systems, rooftop and chiller applications.
Features & Benefits
- Improved Part-Load Efficiencies
- Maintain Full-Load Efficiency
- (2) Assembled, Even-Capacity Compressors
- (2) Capacity Stages
Specifications
- Item: Compressor, Even Tandem Modulation
- Used On Item: High Temperature Commercial Air Conditioner Motor Type 3-Phase 3-Lead Single Voltage; Motor Protection External Enhanced; Nominal Capacity 320000 BTU; Refrigerant Type R-22/R-407C/R-134A; Voltage Rating 200/220 Volt AC 50 Hertz, 200/230 Volt AC 60 Hertz 3-Phase; Efficiency 11.5 EER; Includes Polyol Ester Oil
Specifications
- BrandCopeland
- Capacity82500-101000
- Line Voltage (60Hz)480V
- Rated Voltage (60Hz)380
- RefrigerantR410A
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity83000 btu
- Frequency60
- Height17.91 in
- Length9.69 in
- Liquid Line Size1/2 in
- LRA94.3
- Max RLA18.1
- Max Watts7600
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge3.36 pints
- Shipping Height17.91 in
- Shipping Length9.69 in
- Shipping Weight88 lb
- Shipping Width9.69 in
- TechnologyScroll
- TypeHerm
- Voltage380
- Weight88 lb
- Width9.69 in
