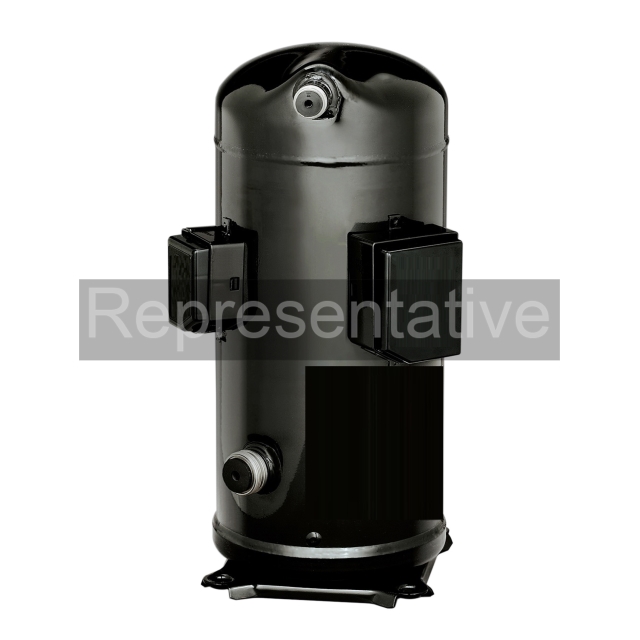

103000 BTU R410A 460-3 Phase Copeland Scroll Compressor
103000 BTU R410A 460-3 Phase Copeland Scroll Compressor
Description
ZPD103KCE-TFD-950
Z = Scroll Compressor
P = A/C Duty - R410A
D = Digital
103K = 103000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
950 = Bill of Material Product Variation
Z = Scroll Compressor
P = A/C Duty - R410A
D = Digital
103K = 103000 BTU
C = Model Series
E = POE Oil - AK/DA or 3MA
T = 3 Phase
F = Internal Inherent Protection - One protector, use with contactor
D = 380/420-3-50 / 460-3-60
950 = Bill of Material Product Variation
Standard Features
- High efficiency – EER 11.0 plus
- Low Noise & Vibration levels
- Inherent motor protection
- Centrifugal oil pump
- For Heat Pump & Air Conditioning duty
- POE Oil
Documents
Specifications
- BrandCopeland
- Capacity105000
- Discharge ConnectionStub
- Discharge ID7/8"
- HP8.5
- Line Voltage (60Hz)480V
- Mounting ArrangementA
- Rated Voltage (60Hz)460
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionStub
- Suction ID1-3/8"
- Variety TypeScroll
- ApplicationA/C, HP
- Compressor Capacity103000 btu
- Frequency50Hz, 60Hz
- Height21 in
- Length11.54 in
- Liquid Line Size7/8 in
- LRA114.0
- Max RLA18.6
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge6.625 pints
- Shell Height21 in
- Shipping Height32 in
- Shipping Length32 in
- Shipping Weight1 lb
- Shipping Width38 in
- Suction Line Size1 3/8 in
- TechnologyScroll
- TypeHerm
- Voltage460
- Weight134 lb
- Width11.23 in
