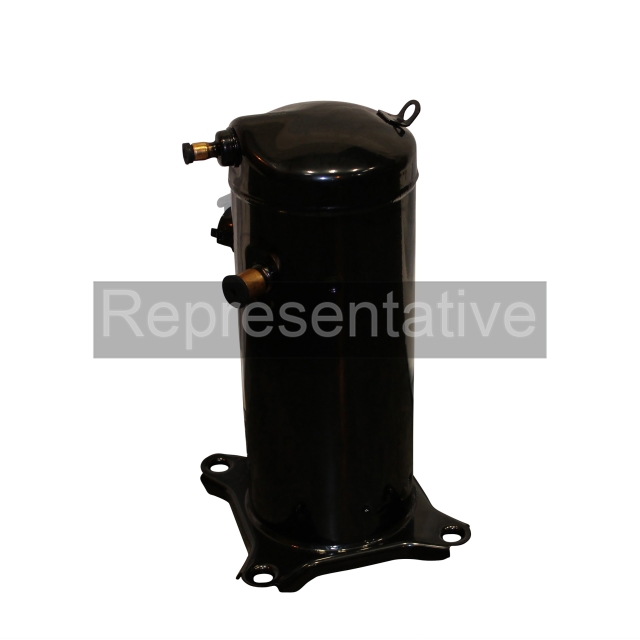

54000 BTU R410A 208/230-3 Phase Copeland Scroll Compressor
54000 BTU R410A 208/230-3 Phase Copeland Scroll Compressor
Description
Emerson Electric Co. (Copeland) Scroll™ 200 to 220 VAC 50 Hz 3-Phase, 200 to 230 VAC 60 Hz, 54000 BTU/Hr, R-410A, Scroll Compressor with POE Oil and Internal Inherent Protection for Air Conditioner
Specifications
- Used On Item: High Temperature Air Conditioner
- Modulation Digital
- Refrigerant Type R-410A
- Nominal Capacity 54000 BTU/Hour
- Voltage Rating 200 to 220 Volt AC 50 Hertz, 200 to 230 Volt AC 60 Hertz 3-Phase
- Motor Type 3-Lead 3-Phase
- Cooling Efficiency 10.8 EER
- Includes POE Oil, Internal Inherent Protection
Documents
There are no documents available.
Specifications
- BrandCopeland
- Capacity54600
- Discharge ConnectionStub
- Discharge ID1/2"
- Line Voltage (60Hz)240V
- Mounting ArrangementA
- Rated Voltage (60Hz)208/230
- RefrigerantR410A
- Refrigerant Oil TypePolyol Ester (POE)
- Suction ConnectionStub
- Suction ID25/32"
- Suction Line Size7/8"
- Variety TypeScroll
- ApplicationA/C
- Compressor Capacity54000 btu
- Frequency50Hz, 60Hz
- Height18.39 in
- Length9.26 in
- Liquid Line Size1/2 in
- LRA110.0
- Max RLA18.8
- Motor Phase3
- Oil Capacity0 ml
- Oil Recharge2.375 pints
- Shell Height18.8 in
- Shipping Height23 in
- Shipping Length17 in
- Shipping Point37406
- Shipping Weight79 lb
- Shipping Width31 in
- TechnologyScroll
- TypeHerm
- Voltage200/220/230
- Weight76.6 lb
- Width9.26 in
